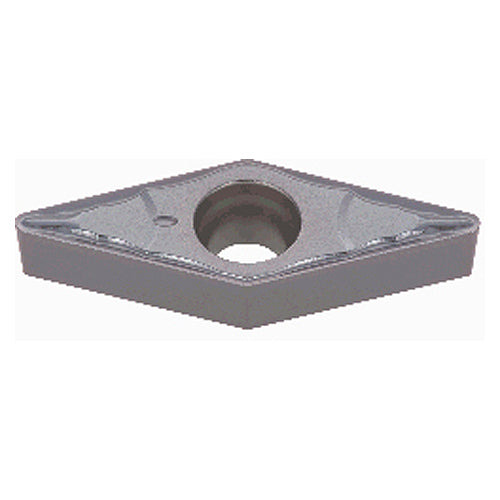

VBMT 331 PS AH8015
Item #: TG556775804
Brand: Tungaloy
Model #: 6775804
| Product Specifications | |
|---|---|
| Applicable Material | | Stainless Steel | Hard Materials | Hi Temp Alloys | |
| Fixing Hole Diameter (D1) | 0.173″ |
| Application | | Inserts | |
| Min D.O.C. | 0.0196″ |
| Insert Style | VBMT |
| Depth of Cut Maximum (APMX) | 0.0984″ |
| Corner Radius (RE) | 0.016″ |
| Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Insert Size | 331 |
| Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Cutting Edge Length (L) | 0.654″ |
| Clearance Angle Major (AN) | 5 Degrees |
| Insert Thickness (S) | 0.187″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Chip Breaker Type | PS |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | TiAlN |
| Series/List # | VBMT 331-PS |
| Grade | AH8015 |
| Body Material | Carbide |
| Tool Type | Turn Positive Inserts |
