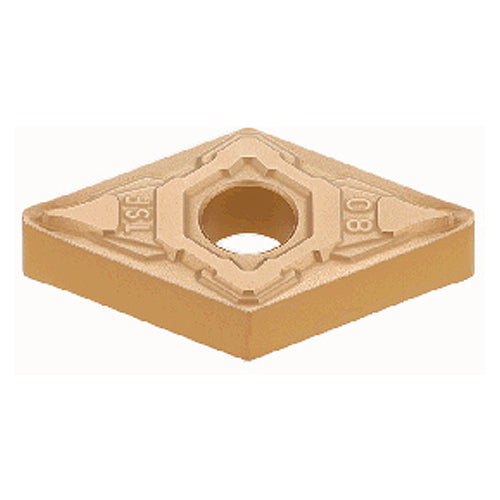

DNMG 442 TSF T9225
Item #: TG556780877
Brand: Tungaloy
Model #: 6780877
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | |
| Fixing Hole Diameter (D1) | 0.203″ |
| Application | | Inserts | |
| Min D.O.C. | 0.0078″ |
| Insert Style | DNMG |
| Depth of Cut Maximum (APMX) | 0.059″ |
| Corner Radius (RE) | 0.031″ |
| Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Insert Size | 442 |
| Max. Turning Feed (ft(max)) | 0.0157 ″/rev |
| Cutting Edge Length (L) | 0.61″ |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/4″ |
| Chip Breaker Type | TSF |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Measurement Type | Inch |
| Grade | T9225 |
| Series/List # | DNMG 442-TSF |
| Tool Type | Turn Negative Inserts |
| Body Material | Carbide |
