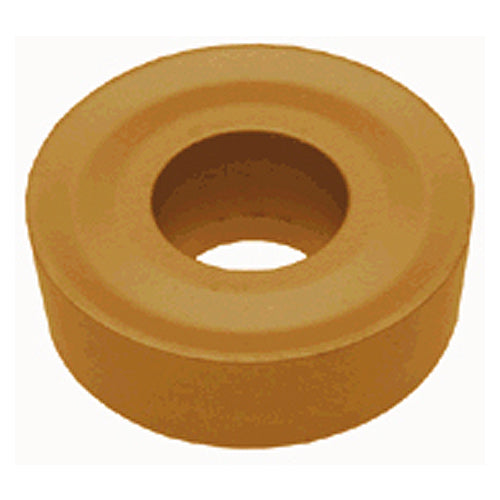

RCMM1606M0-61 T9225
Item #: TG556781102
Brand: Tungaloy
Model #: 6781102
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | |
| Min D.O.C. | 0.059″ |
| Application | | Inserts | |
| Depth of Cut Maximum (APMX) | 0.1181″ |
| Insert Style | RCMM |
| Min. Turning Feed (ft(min)) | 0.0236 ″/rev |
| Insert Size | 1606M0 |
| Max. Turning Feed (ft(max)) | 0.0472 ″/rev |
| Cutting Edge Length (L) | 0.63″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 1/4″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 0.63″ |
| Chip Breaker Type | 61 |
| Grade | T9225 |
| Measurement Type | Inch |
| Tool Type | Turn Positive Inserts |
| Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.205″ |
