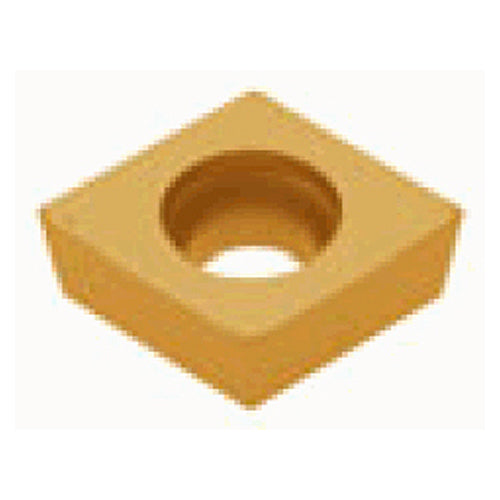

CCGW 32.51 GH110
Item #: TG556801363
Brand: Tungaloy
Model #: 6801363
| Product Specifications | |
|---|---|
| Applicable Material | | Cast Iron | Non Ferrous Metals | |
| Tool Type | Turn Positive Inserts |
| Application | | Inserts | |
| Fixing Hole Diameter (D1) | 0.173″ |
| Insert Style | CCGW |
| Min D.O.C. | 0.0039″ |
| Corner Radius (RE) | 0.016″ |
| Depth of Cut Maximum (APMX) | 0.0394″ |
| Insert Size | 32.51 |
| Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Cutting Edge Length (L) | 0.382″ |
| Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Insert Thickness (S) | 0.156″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide |
| Chip Breaker Type | FT |
| Coating | TiCNO |
| Measurement Type | Inch |
| Grade | GH110 |
| Body Material | Carbide |
