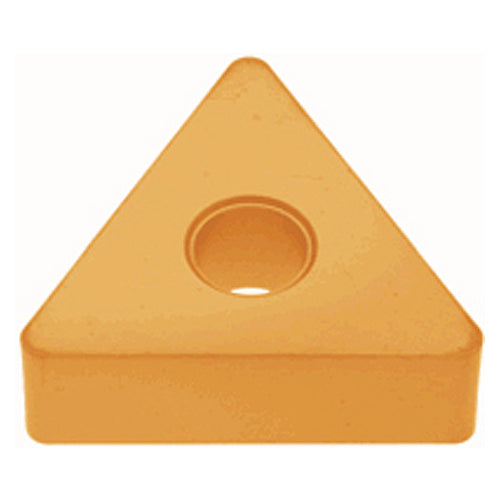

TNGA 331 TH10
Item #: TG556808088
Brand: Tungaloy
Model #: 6808088
| Product Specifications | |
|---|---|
| Applicable Material | | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Tool Type | Turn Negative Inserts |
| Application | | Inserts | |
| Fixing Hole Diameter (D1) | 0.15″ |
| Insert Style | TNGA |
| Min D.O.C. | 0.0004″ |
| Corner Radius (RE) | 0.016″ |
| Depth of Cut Maximum (APMX) | 0.0787″ |
| Insert Size | 331 |
| Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Cutting Edge Length (L) | 0.65″ |
| Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Insert Thickness (S) | 0.187″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Chip Breaker Type | FT |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Grade | TH10 |
| Body Material | Carbide |
