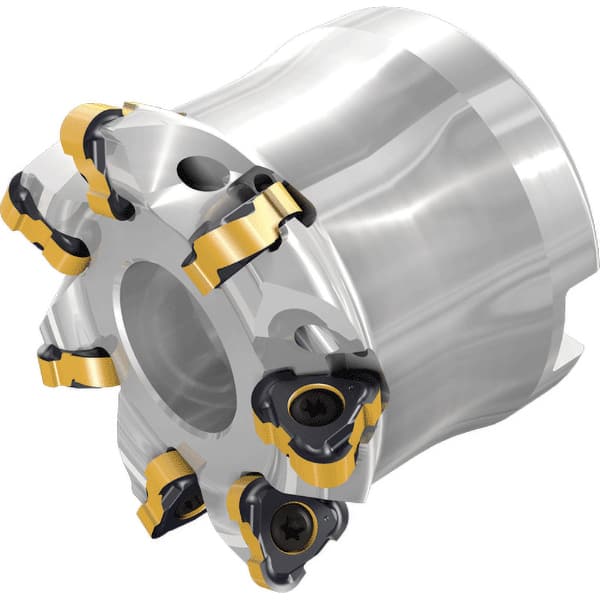

Iscar - Indexable Copy Face Mills Cutting Diameter (mm): 71.20 Cutting Diameter (Decimal Inch): 2.8030
Item #: 15110166
Brand: Iscar
Model #: 3344373
Product Specifications
Indexable Copy Face Mills; Cutting Diameter (mm): 71.20 ; Cutting Diameter (Decimal Inch): 2.8030 ; Maximum Depth of Cut (mm): 2.50 ; Maximum Depth of Cut (Decimal Inch): 0.0980 ; Arbor Hole Diameter (Inch): 1.25 ; Arbor Hole Diameter (Decimal Inch): 1.2500
| Cutting Diameter (mm) | 71.20 |
| Cutting Diameter (Decimal Inch) | 2.8030 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Arbor Hole Diameter (Inch) | 1.25 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Overall Height (mm) | 50.80000 |
| Overall Height (Decimal Inch) | 2.0000 |
| Series | TR6 |
| Number of Cutter Inserts | 10 |
| Insert Compatibility | TR |
| Cutter Style | TOR6MILL |
| Through Coolant | Yes |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 2.8700 |
| Hub Diameter (mm) | 72.900 |
| Overall Diameter (Decimal Inch) | 2.8700 |
| Overall Diameter (mm) | 72.9000 |
| Maximum Cutting Diameter (Decimal Inch) | 3.0000 |
