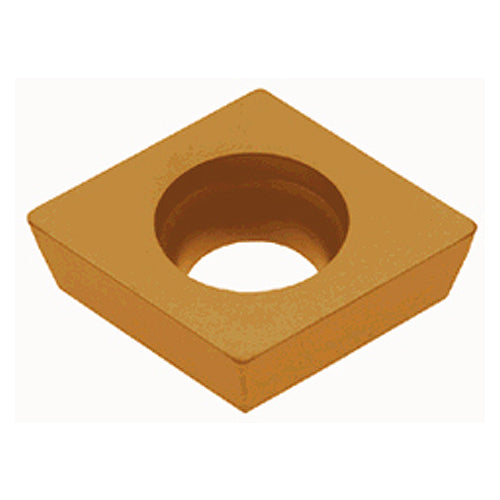

CPMW080204 T5115
Item #: TG556862077
Brand: Tungaloy
Model #: 6862077
| Product Specifications | |
|---|---|
| Applicable Material | | Cast Iron | |
| Tool Type | Turn Positive Inserts |
| Application | | Inserts | |
| Fixing Hole Diameter (D1) | 3.4 mm |
| Insert Style | CPMW |
| Min D.O.C. | 0.1 mm |
| Corner Radius (RE) | 0.4 mm |
| Depth of Cut Maximum (APMX) | 2 mm |
| Insert Size | 080204 |
| Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 8.1 mm |
| Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Insert Thickness (S) | 2.38 mm |
| Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 7.94 mm |
| Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide |
| Chip Breaker Type | FT |
| Coating | TiCN+Al2O3+TiN |
| Measurement Type | Metric |
| Grade | T5115 |
| Body Material | Carbide |
