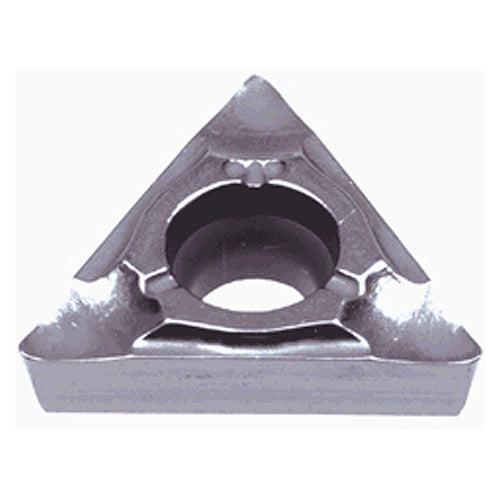

TPGT110202-SS NS9530
Item #: TG556997991
Brand: Tungaloy
Model #: 6997991
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Fixing Hole Diameter (D1) | 2.8 mm |
| Application | | Inserts | |
| Min D.O.C. | 0.5 mm |
| Insert Style | TPGT |
| Depth of Cut Maximum (APMX) | 3 mm |
| Corner Radius (RE) | 0.2 mm |
| Min. Turning Feed (ft(min)) | 0.08 mm/rev |
| Insert Size | 110202 |
| Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Cutting Edge Length (L) | 11 mm |
| Clearance Angle Major (AN) | 11 Degrees |
| Insert Thickness (S) | 2.38 mm |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 6.35 mm |
| Chip Breaker Type | SS |
| Cutting Edge Material | Cermet |
| Measurement Type | Metric |
| Grade | NS9530 |
| Body Material | Carbide |
| Tool Type | Turn Positive Inserts |
