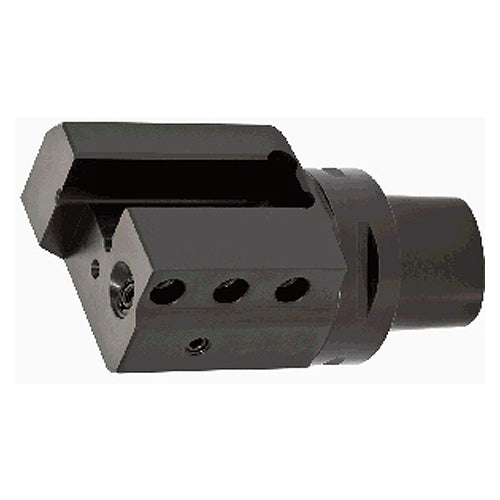

C5ASHR201
Item #: TG604509543
Brand: Tungaloy
Model #: 4509543
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 50 mm |
| Shank Size (SS) | C5 |
| Clamping Length Workpiece Side (LSCWS) | 63.5 mm |
| Application | | Face contact interface | |
| Shank Width (B) | 20 mm |
| Cutting Direction (HAND) | Right Hand |
| Shank Height (H) | 20 mm |
| Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Body Diameter (BD) | 90 mm |
| Measurement Type | Metric |
| Functional Length (LF) | 24.5 mm |
| Body Material | Steel |
| Functional Width (WF) | 10 mm |
