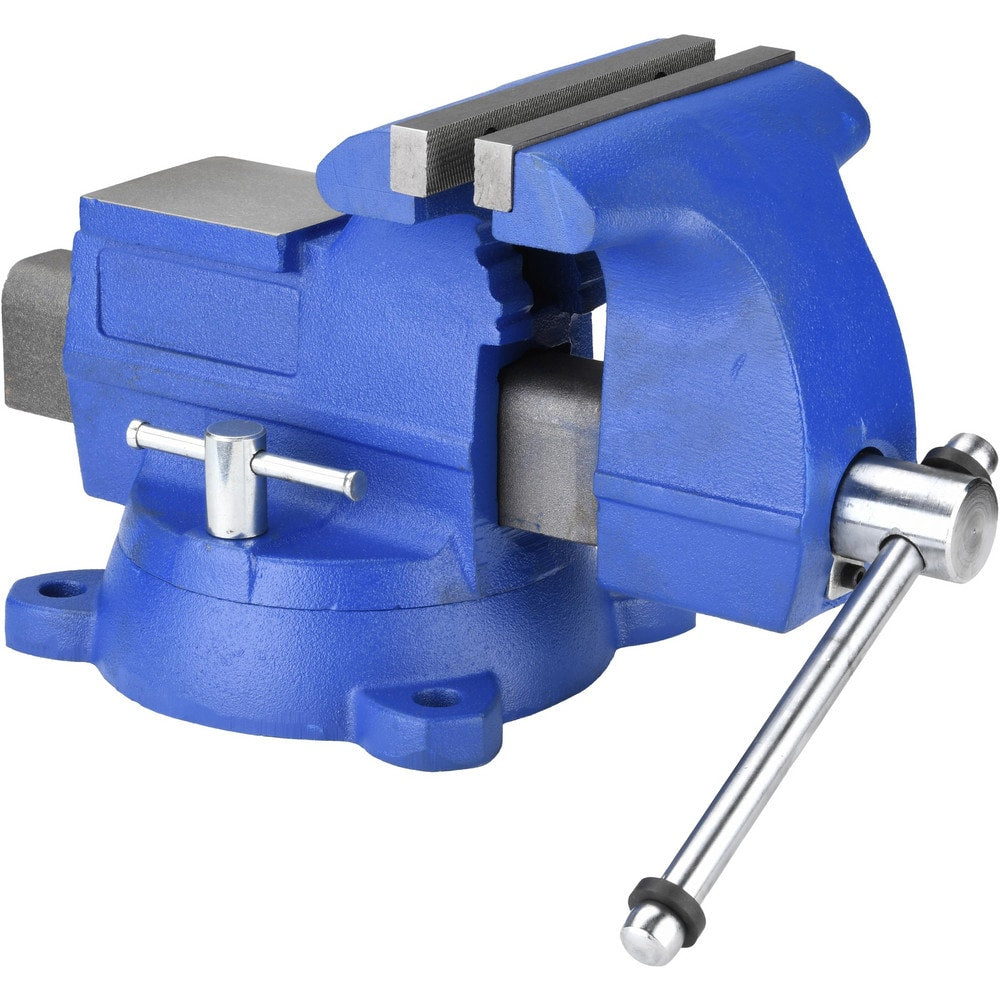

Bench & Pipe Combination Vises; Jaw Width (Inch): 8; Jaw Width: 8; Jaw Opening Capacity: 7.5; Throat Depth: 4.5; Minimum Pipe Capacity (Inch): 1/8; Minimum Pipe Capacity (Decimal Inch): 0.1250; Maximum Pipe Capacity (Decimal Inch): 3.0000; Maximum Pipe Ca
Item #: 00340620
Brand: Gibraltar
Model #: 56415
Product Specifications
| Jaw Width (Inch) | 8 |
| Jaw Width | 8 |
| Jaw Opening Capacity | 7.5 |
| Throat Depth | 4.5 |
| Minimum Pipe Capacity (Inch) | 1/8 |
| Minimum Pipe Capacity (Decimal Inch) | 0.1250 |
| Maximum Pipe Capacity (Decimal Inch) | 3.0000 |
| Maximum Pipe Capacity (Inch) | 3 |
| Base Motion Type | Swivel |
| Base Attachment Type | Bolt Down |
| Material | Cast Iron |
| Overall Length (Inch) | 18 |
| Overall Length (Decimal Inch) | 18.0000 |
| Overall Width (Decimal Inch - 4 Decimals) | 8 |
| Overall Height (Inch) | 9 |
| Overall Height (Decimal Inch) | 9.0000 |
| Swivel Angle | 360.00 |
| High Visibility | No |
| Anvil | Yes |
| Reversible | No |
| Pipe Jaw Included | Yes |
| Jaw Face | Serrated |
| Duty Rating | Standard-Duty |
| Number Of Lock Down Bolts | 2 |
| Includes | Bench vise with swivel base and dual lockdowns |
| Features | Replaceable Hardened Steel Serrated (Top) Jaws; 30,000 PSI Cast Grey Iron with Steel U Channel Bar; 360° Swivel Base with (2) Lockdowns |
| Model Number | 480 |
| Additional Information | Large Anvil Work Surface; Large Pipe Jaw Capacity; No Pinch Main Screw Handle |
| UNSPSC Code | 27112102 |
