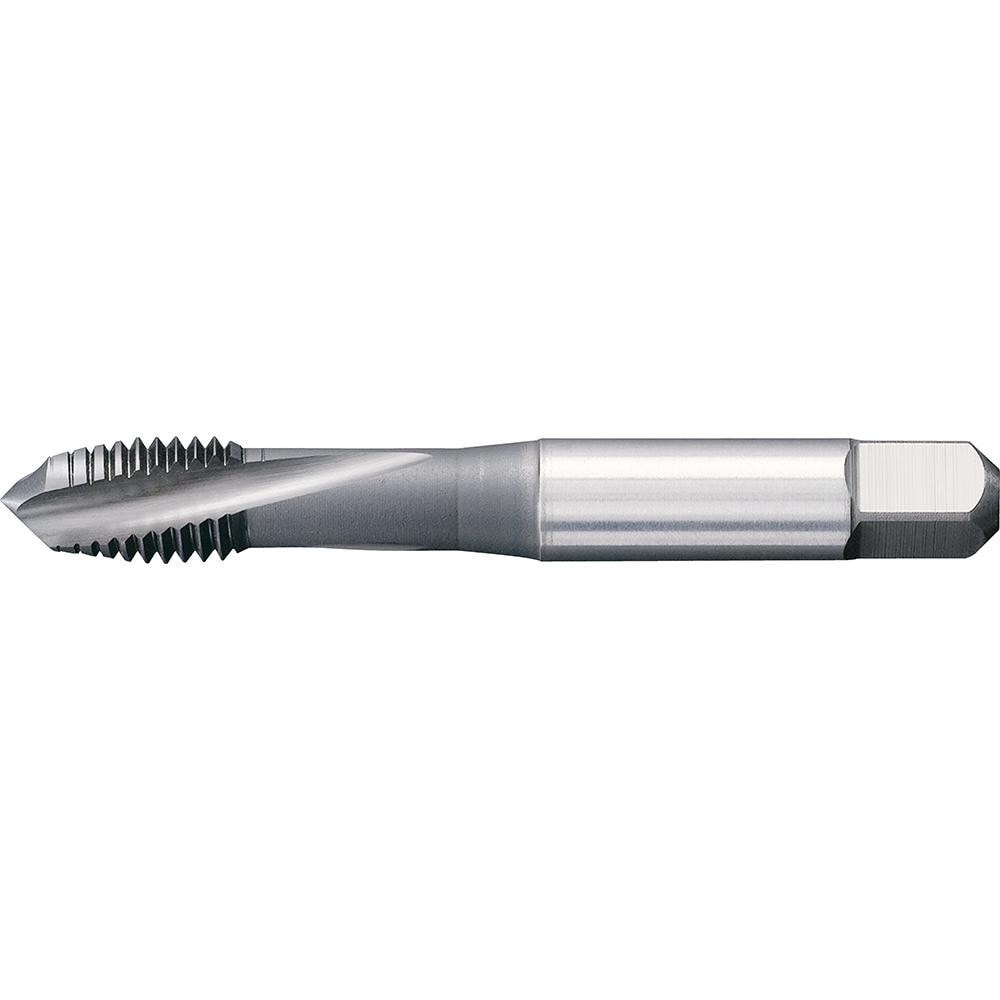

Brand: Widia / Part #: 3955001
Item #: 96088315
Brand: Widia
Model #: 3955001
Product Specifications
| Thread Size (Inch) | 1/4-28 |
| Chamfer | Plug |
| Thread Limit | H6 |
| Class Of Fit | 2BX |
| Number Of Flutes | 3 |
| Material | Powdered Metal |
| Threads per Inch | 28 |
| Thread Direction | Right Hand |
| Flute Direction | Left Hand |
| Coating/Finish | TiCN |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 0.4400 |
| Overall Length (Decimal Inch) | 2.5000 |
| Thread Depth (Decimal Inch) | 1.0000 |
| Thread Pitch (Decimal Inch) | 0.0357 |
| Thread Standard | UNF |
| Material Grade | WU32MG |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Square Size (Decimal Inch) | 0.1890 |
| Material Application | High-Temperature Alloy; Steel |
| Series | GT20 |
