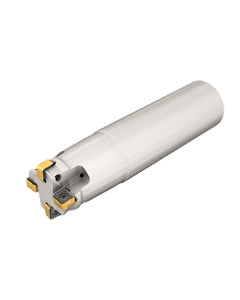

S890 ESZ D25-3-C25-R08
Item #: EH313417100
Brand: Iscar
Model #: 3417100
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 25 mm |
| Head Length (LH) | 35 mm |
| Cutting Diameter (DC) | 25 mm |
| Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 3 |
| Flute Count (NOF) | 3 |
| Depth of Cut Maximum (APMX) | 5 mm |
| Coolant Supply Property (CSP) | Through Hole |
| Overall Length (OAL) | 120 mm |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
| Application | | Shouldering | Slotting | |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25 mm |
| Body Material | Steel |
| Master Insert Identification (MIID) | S890 SZMU 0804 |
| Connection Code Machine Side (CCMS) | Disk type |
