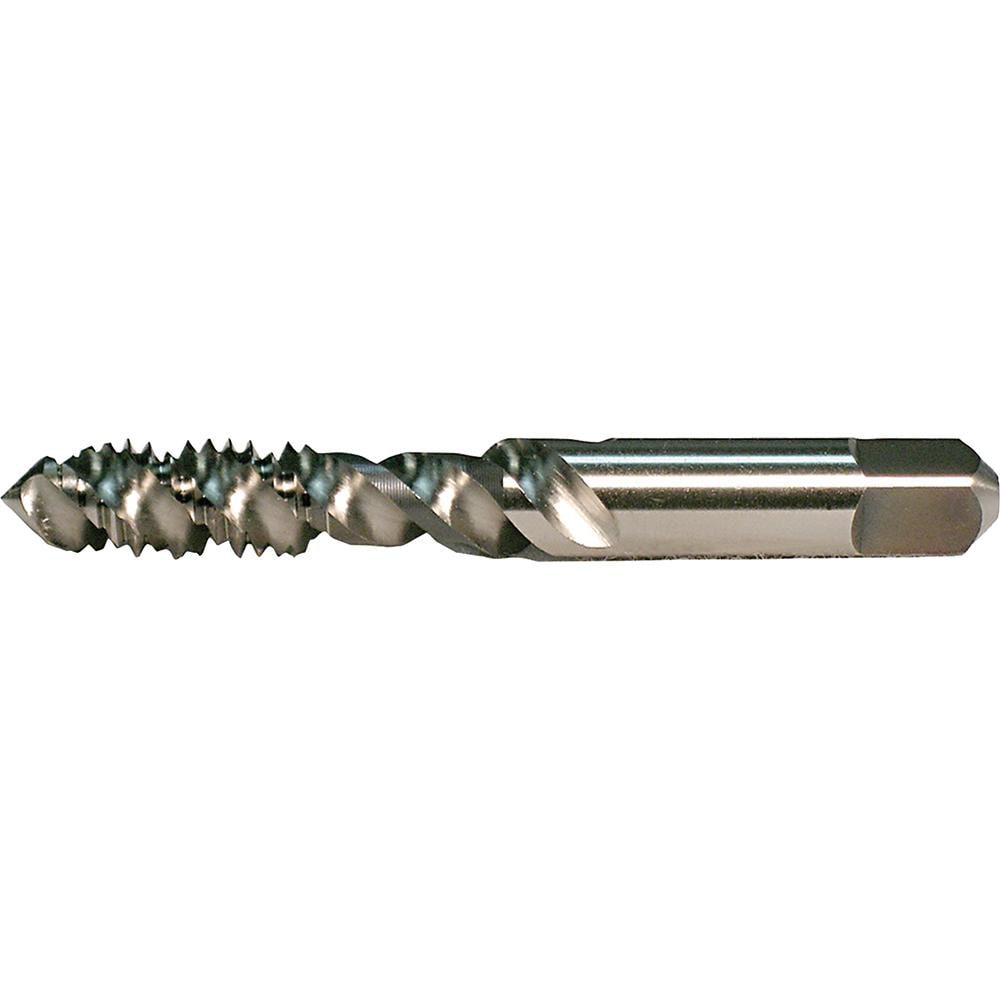

Brand: Widia / Part #: 2746435
Item #: 95456117
Brand: Widia
Model #: 2746435
Product Specifications
| Thread Size (Inch) | 7/16-14 |
| Chamfer | Bottoming |
| Thread Limit | H3 |
| Class Of Fit | 3B |
| Number Of Flutes | 3 |
| Material | High Speed Steel |
| Threads per Inch | 14 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | TiN |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 0.8750 |
| Overall Length (Decimal Inch) | 3.1562 |
| Thread Depth (Decimal Inch) | 0.8750 |
| Thread Pitch (Decimal Inch) | 0.0714 |
| Thread Standard | UNC |
| Shank Diameter (Decimal Inch) | 0.3230 |
| Square Size (Decimal Inch) | 0.2420 |
| Material Application | Steel |
| Series | 2314 |
