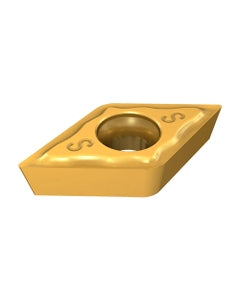

DCGT 3-1-F1M-12P IC1008
Item #: EH553397155
Brand: Iscar
Model #: 3397155
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Tool Type | Turn Positive Inserts |
| Application | | Ext. 55° Diamond 107.5° Appr. | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 91° Approach | Ext. 55° Diamond 93° Approach | Int 55° Diamond 93 5° Approach | |
| Fixing Hole Diameter (D1) | 0.173″ |
| Corner Radius (RE) | 0.0157″ |
| Min D.O.C. | 0.001″ |
| Cutting Edge Length (L) | 0.458″ |
| Depth of Cut Maximum (APMX) | 0.007″ |
| Insert Thickness (S) | 0.156″ |
| Min. Turning Feed (ft(min)) | 0.0118 ″/rev |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Max. Turning Feed (ft(max)) | 0.1772 ″/rev |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | TiAlN+TiN |
| Body Material | Carbide |
| Grade | IC1008 |
