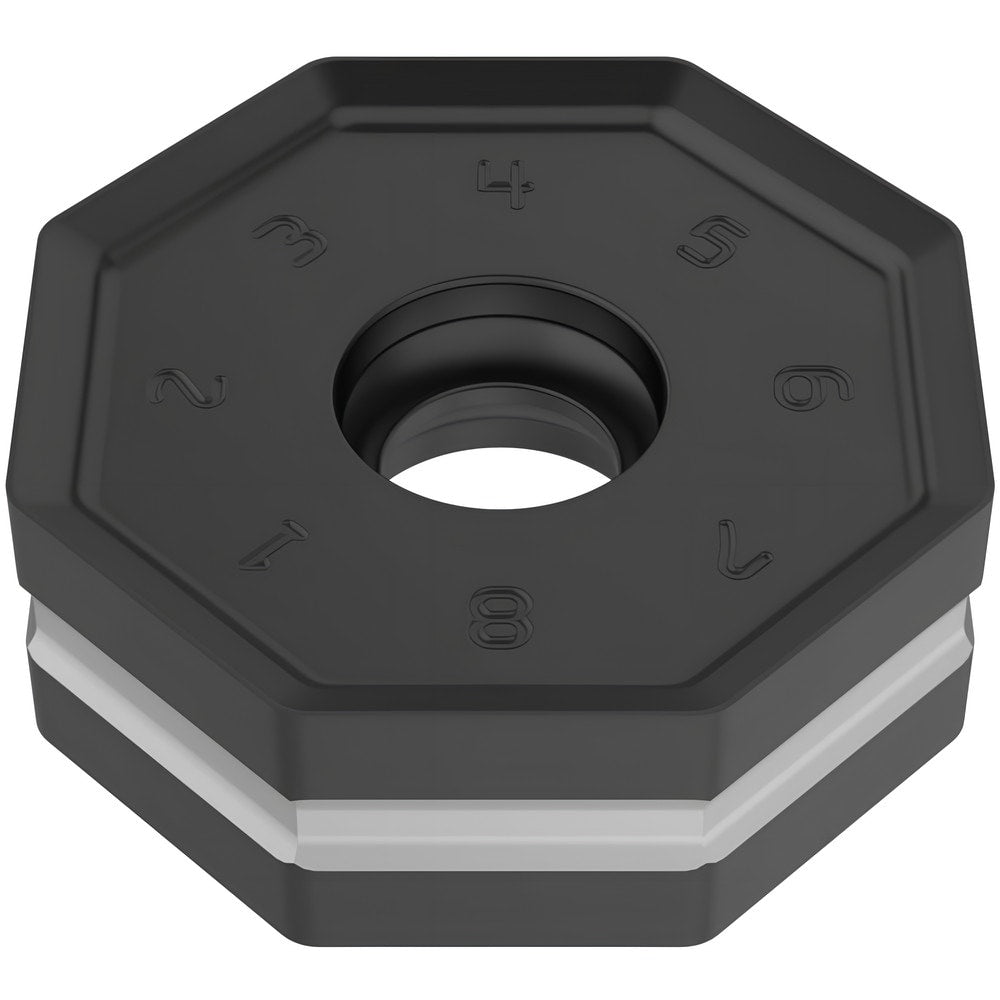

Brand: Seco / Part #: 10159521
Item #: 67252619
Brand: Seco
Model #: 10159521
Product Specifications
| Insert Style | ONMU |
| Insert Size Code | 09 |
| Insert Size | 09 |
| Insert Material | Carbide |
| Manufacturer Grade | T350M |
| Inscribed Circle (Decimal Inch) | 0.8661 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Insert Hand | Neutral |
| Relief Angle | 0.000 |
| Series | ONMU09 |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.2205 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Number Of Cutting Edges | 16 |
| Cutting Edge Effective Length (Decimal Inch) | 0.3189 |
| Insert Shape | Octagon |
| Rake | Negative |
| Primary Workpiece Material | Super-Alloys & Titanium; Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | ONMU090512TN-ME16 |
| Iso Code | ONMU090512TN-ME16 |
| Rake Angle | 25.000 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | ONMU090512TN-ME16 |
| Chip Breaker | ME16 |
| Cutting Direction | Neutral |
| Shape | Octagon |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiCN; Al2O3 |
| Included Angle Degree | 135 |
| Width (Decimal Inch - 4 Decimals) | 0.8661 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2677 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.8661 |
