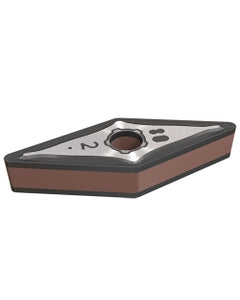

VNMG 2.5-1-M3M IC807
Item #: EH553358853
Brand: Iscar
Model #: 3358853
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Tool Type | Turn Negative Inserts |
| Application | | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 93° Approach | Int. 35° Diamond 93° Approach | ISO Turning Inserts | |
| Min D.O.C. | 0.016″ |
| Corner Radius (RE) | 0.0157″ |
| Depth of Cut Maximum (APMX) | 0.079″ |
| Cutting Edge Length (L) | 0.488″ |
| Min. Turning Feed (ft(min)) | 0.0031 ″/rev |
| Insert Thickness (S) | 0.153″ |
| Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Inscribed Circle Diameter (IC) | 0.281″ |
| Chip Breaker Type | M3M |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | TiAlN+TiN |
| Body Material | Carbide |
| Grade | IC807 |
