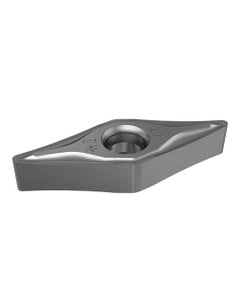

VNMG 2.5-2-NF IC8150
Item #: EH5508170
Brand: Iscar
Model #: 5508170
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Cast Iron | |
| Tool Type | Turn Negative Inserts |
| Application | | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 93° Approach | Int. 35° Diamond 93° Approach | ISO Turning Inserts | |
| Fixing Hole Diameter (D1) | 0.14″ |
| Insert Style | VNMG |
| Min D.O.C. | 0.039″ |
| Corner Radius (RE) | 0.0315″ |
| Depth of Cut Maximum (APMX) | 0.118″ |
| Insert Size | 2.5-2 |
| Min. Turning Feed (ft(min)) | 0.0031 ″/rev |
| Cutting Edge Length (L) | 0.488″ |
| Max. Turning Feed (ft(max)) | 0.0094 ″/rev |
| Insert Thickness (S) | 0.156″ |
| Chip Breaker Type | NF |
| Inscribed Circle Diameter (IC) | 0.281″ |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Shape | 35° Rhombic |
| Coating | TiCN+Al2O3+TiCN+TiN |
| Body Material | Carbide |
| Grade | IC8150 |
