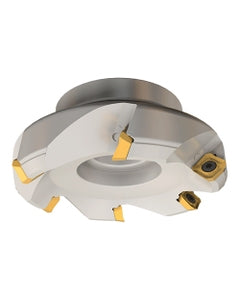

F45ST D250-60
Item #: EH313101010
Brand: Iscar
Model #: 3101010
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 263.7 mm |
| Arbor Style | C |
| Cutting Diameter (DC) | 250 mm |
| Master Insert Identification (MIID) | SEMT 1204AFTN-76 |
| Cutting Diameter Maximum (DCX) | 263.7 mm |
| Body Material | Steel |
| Cutting Item Count (CICT) | 13 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 6.5 mm |
| Application | | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 60 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 63 mm |
| Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Hub Diameter (DHUB) | 150 mm |
| Tool Type | 45° Facemills |
