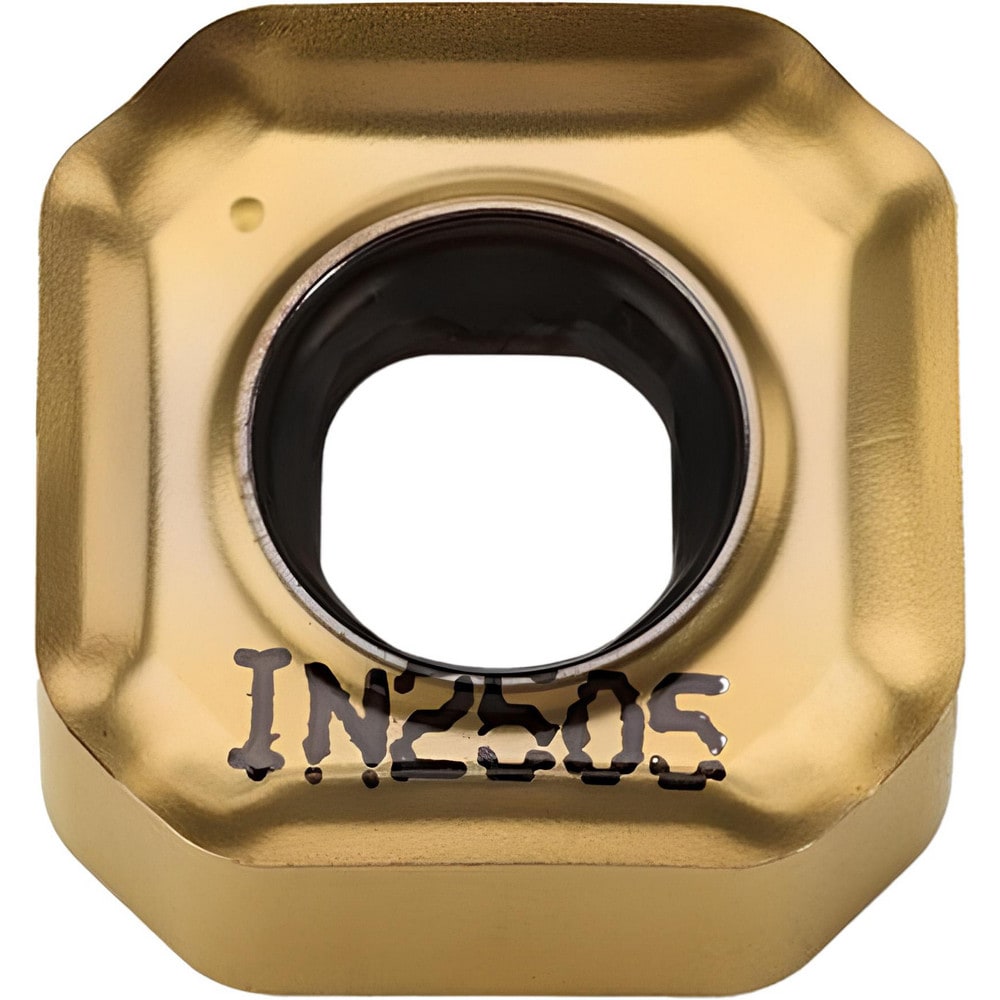

Brand: Ingersoll Cutting Tools / Part #: 5812734
Item #: 67326835
Brand: Ingersoll Cutting Tools
Model #: 5812734
Product Specifications
| Insert Style | SNEV |
| Insert Size Code | 1204 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2505 |
| Length (Inch) | 1/2 |
| Thickness (Inch) | 7/32 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Hand | Right Hand |
| Series | SNEV |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.4000 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Square |
| Rake | Negative |
| Primary Workpiece Material | Hard Material; Cast Iron; Steel |
| Primary Workpiece Material Code | P; H; K |
| Ansi Code | SNEV1204ANN-PH I |
| Rake Angle | 0.000 |
| Manufacturers Catalog Number | SNEV1204ANN-PH I IN2505 |
| Cutter Series Compatibility | DJ1H |
| Chip Breaker | PH |
| Cutting Direction | Right Hand |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | No |
