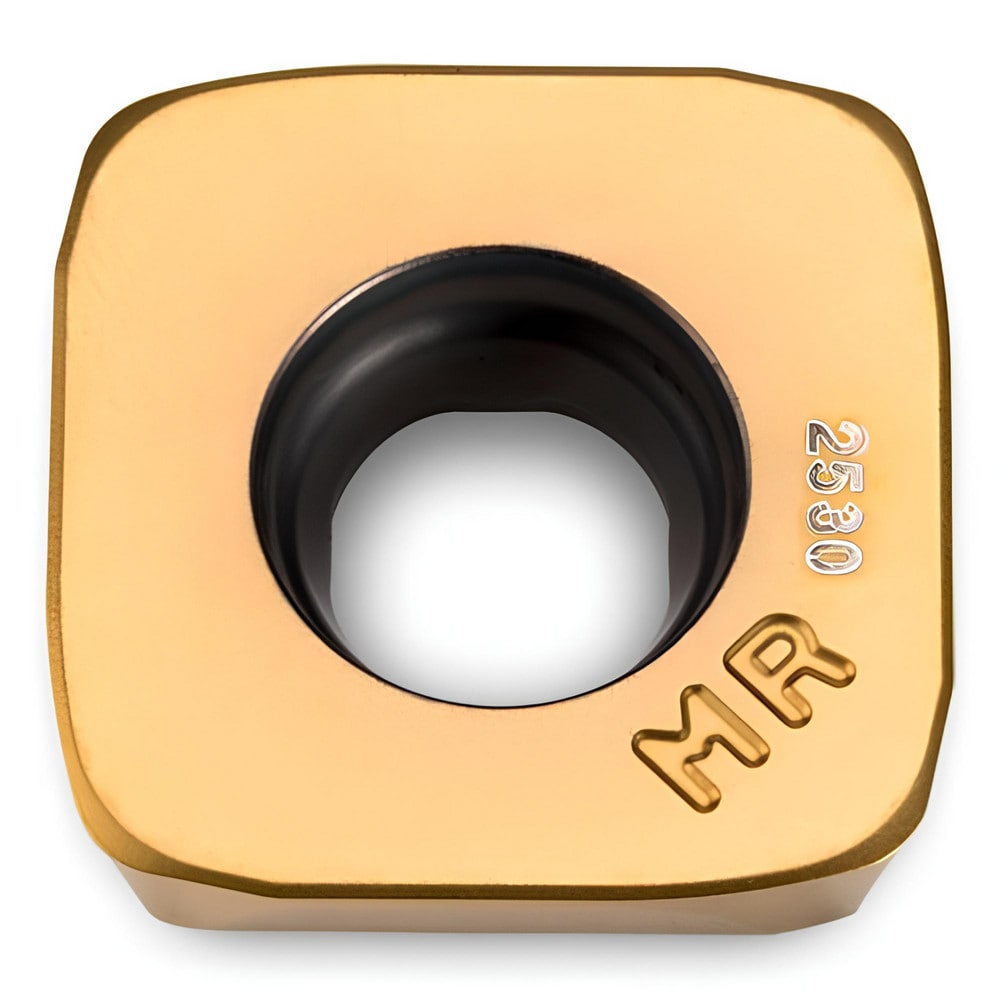

Brand: Ingersoll Cutting Tools / Part #: 2919364
Item #: 67320531
Brand: Ingersoll Cutting Tools
Model #: 2919364
Product Specifications
| Insert Style | SDXS |
| Insert Size Code | 1906 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2530 |
| Thickness (Inch) | 1/4 |
| Inscribed Circle (mm) | 19.00 |
| Corner Radius (Decimal Inch) | 0.2100 |
| Insert Hand | Right Hand |
| Series | SDXS |
| Coating Process | PVD |
| Maximum Depth of Cut (mm) | 9.50 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | SDXS1906MPR-MR J |
| Rake Angle | 15.000 |
| Manufacturers Catalog Number | SDXS1906MPR-MR J IN2530 |
| Cutter Series Compatibility | 5G6M; 5G5M; 5M6M; 5M5M |
| Chip Breaker | MR |
| Cutting Direction | Right Hand |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 90 |
| Length | 19.00 |
| Width (Mm - 2 Decimals) | 19.00 |
| Multi-Use Tool | No |
