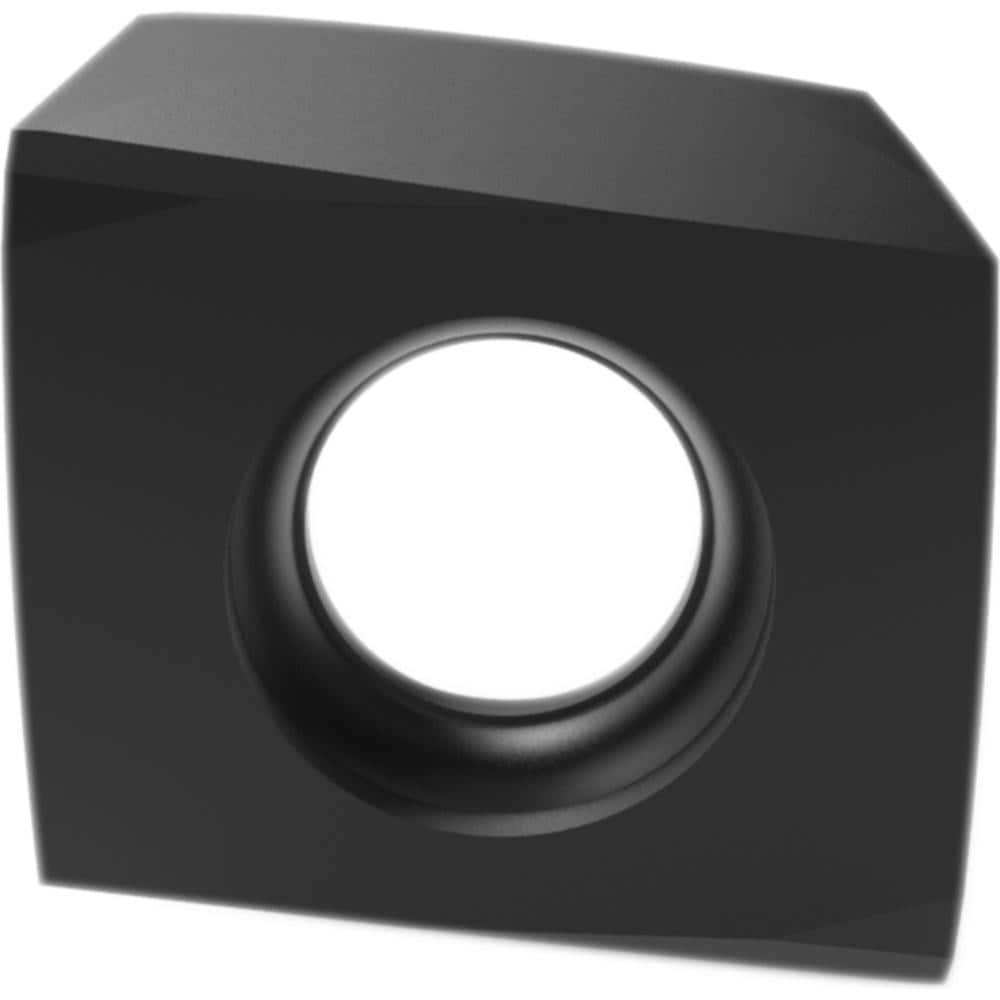

Brand: Widia / Part #: 6877620
Item #: 94530904
Brand: Widia
Model #: 6877620
Product Specifications
| Insert Style | XDHX |
| Insert Size Code | 1004 |
| Insert Size | 10 |
| Insert Material | Carbide |
| Width (Inch) | 1/2 |
| Manufacturer Grade | WU10PM |
| Length (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Insert Hand | Neutral |
| Relief Angle | 12.000 |
| Series | M1600 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.2146 |
| Maximum Depth of Cut (Decimal Inch) | 0.4992 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Hard Material; Cast Iron |
| Primary Workpiece Material Code | H; K |
| Ansi Code | XDHX1004RW2C |
| Iso Code | XDHX1004RW2C |
| Manufacturers Catalog Number | XDHX1004RW2C |
| Cutter Series Compatibility | M760 FINISHING INSERT |
| Chip Breaker | W2C |
| Cutting Direction | Neutral |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Parallelogram |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiAlN |
| Included Angle Degree | 83 |
| Width (Decimal Inch - 4 Decimals) | 0.4992 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1875 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4992 |
