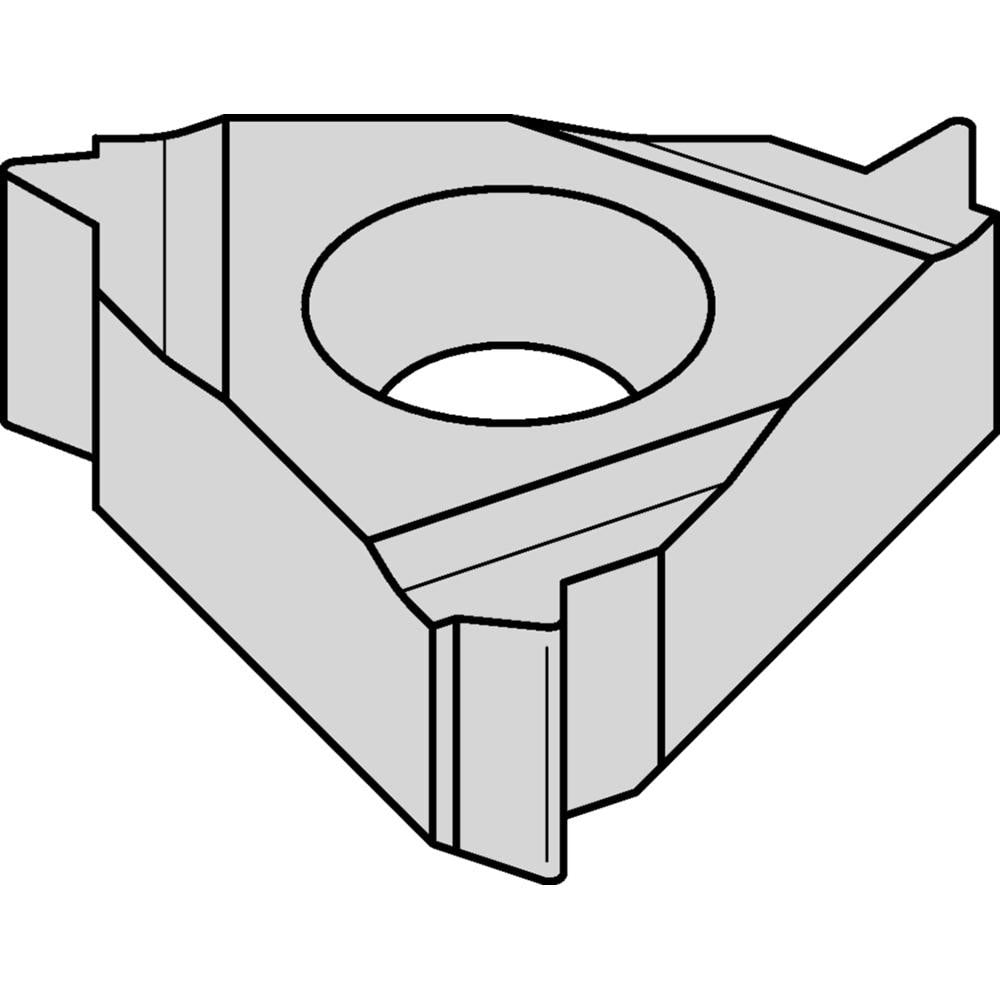

Brand: Widia / Part #: 2019335
Item #: 99581928
Brand: Widia
Model #: 2019335
Product Specifications
| Insert Style | IR |
| Insert Size Code | 3 |
| Insert Material | Carbide |
| Manufacturer Grade | TN6025 |
| Material Grade | TiAlN |
| Threads Per Inch | 11.5 |
| Thread Type | Internal |
| Thread Standard | NPT |
| Insert Hand | Right Hand |
| Included Angle | 60.00 |
| Chipbreaker | None |
| Series | 3IR |
| Coating Process | PVD |
| Inscribed Circle (Inch) | 3/8 |
| Hole Diameter (Decimal Inch) | 0.1550 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Secondary Workpiece Material | Non-Ferrous Metal |
| Secondary Workpiece Material Code | N |
| Ansi Code | 3IR115NPT |
| Iso Code | 3IR115NPT |
| Cutting Edge to Theoretical Edge Length (Decimal Inch) | 0.059 |
| Face of Insert to Tip Centerline (Decimal Inch) | 0.043 |
| Number of Teeth Per Side | 1 |
| Cutting Direction | Right Hand |
| Manufacturers Catalog Number | 3IR115NPT |
| Coating Classification | PVD |
| Thickness (Decimal Inch - 4 Decimals) | 0.1350 |
| Coating/Finish | TiAlN |
