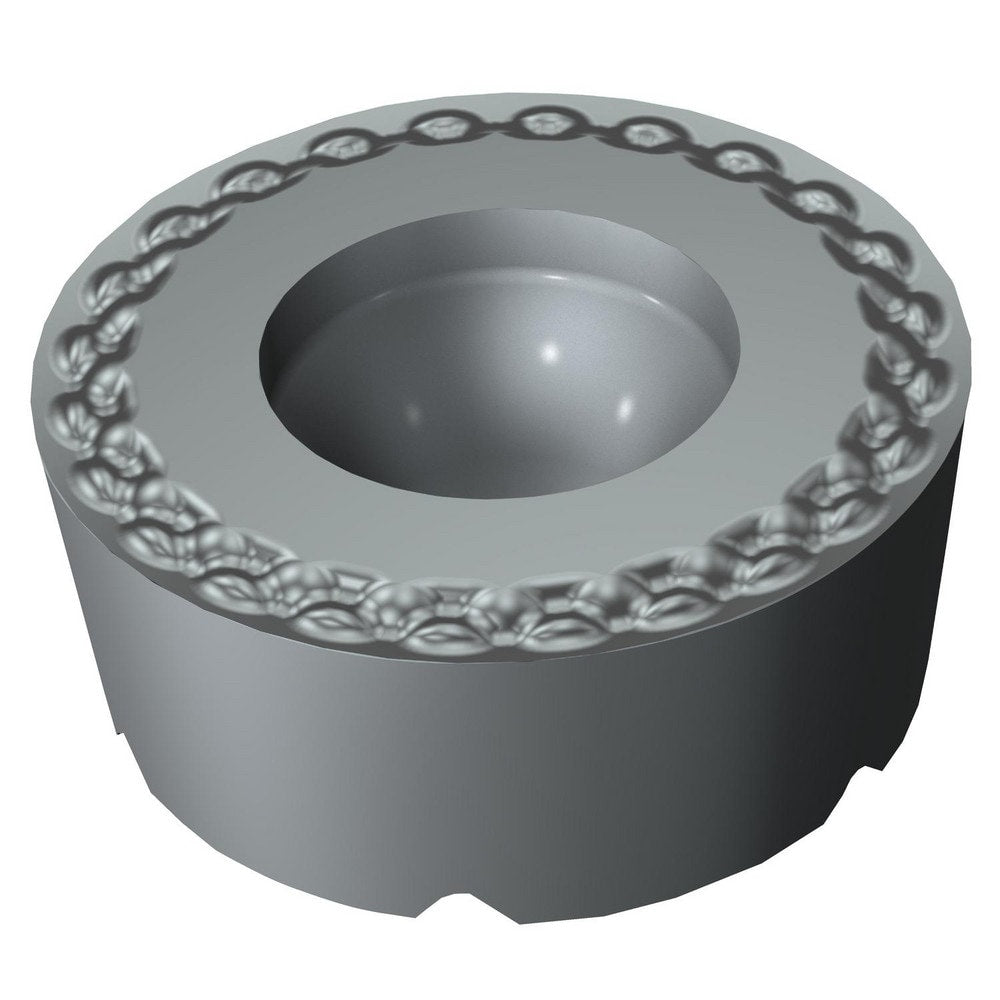

Brand: Sandvik Coromant / Part #: 8267951
Item #: 98803877
Brand: Sandvik Coromant
Model #: 8267951
Product Specifications
| Insert Style | RCGT |
| Insert Shape Code | R |
| Insert Size Code | 1204 |
| Insert Shape | Round |
| Coating/Finish | Uncoated |
| Manufacturer Grade | H13A |
| Corner Radius (mm) | 6.00 |
| Corner Radius (Decimal Inch) | 0.2362 |
| Insert Material | Carbide |
| Inscribed Circle (mm) | 12.00 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Clearance Code | C |
| Tolerance Code | G |
| Relief Angle | 7.000 |
| Series | CoroTurn? 107 |
| Coating Process | Uncoated |
| Wiper Edge | No |
| Number Of Cutting Edges | 6 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Ansi Code | RCGT 12 04 MP-L3 H13A |
| Iso Code | RCGT 12 04 MP-L3 H13A |
| Manufacturers Catalog Number | RCGT 12 04 MP-L3 H13A |
| Cutting Direction | Neutral |
| Stocking Category | Direct Ship |
| Chip Breaker | L3 |
| Style | RCGT |
