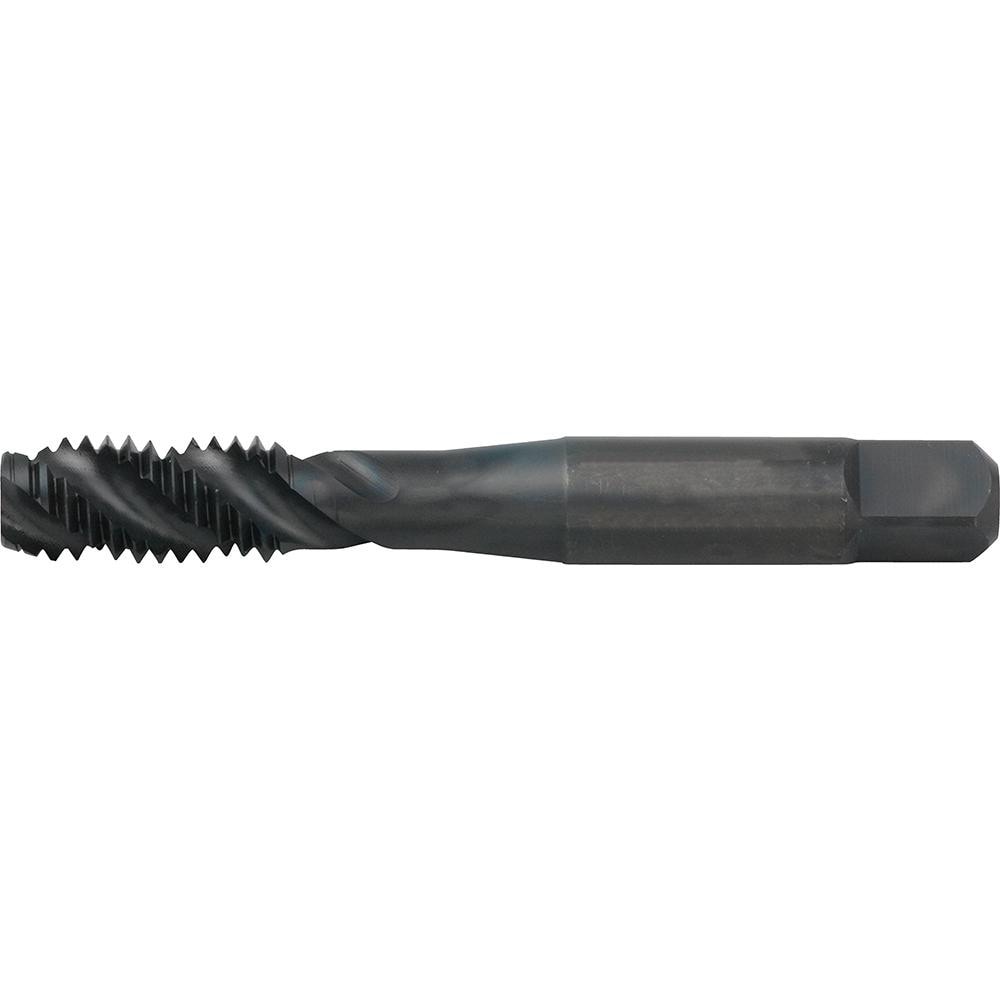

Brand: Widia / Part #: 5364108
Item #: 97541866
Brand: Widia
Model #: 5364108
Product Specifications
| Thread Size (Inch) | #12-28 |
| Chamfer | Modified Bottoming |
| Thread Limit | H3 |
| Class Of Fit | 3B |
| Number Of Flutes | 3 |
| Material | High Speed Steel |
| Threads per Inch | 28 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | Oxide |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 2.4300 |
| Thread Depth (Decimal Inch) | 0.9600 |
| Thread Pitch (Decimal Inch) | 0.0357 |
| Thread Standard | UNF |
| Material Grade | WP49EG |
| Shank Diameter (Decimal Inch) | 0.2200 |
| Square Size (Decimal Inch) | 0.1630 |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | VTSFT |
