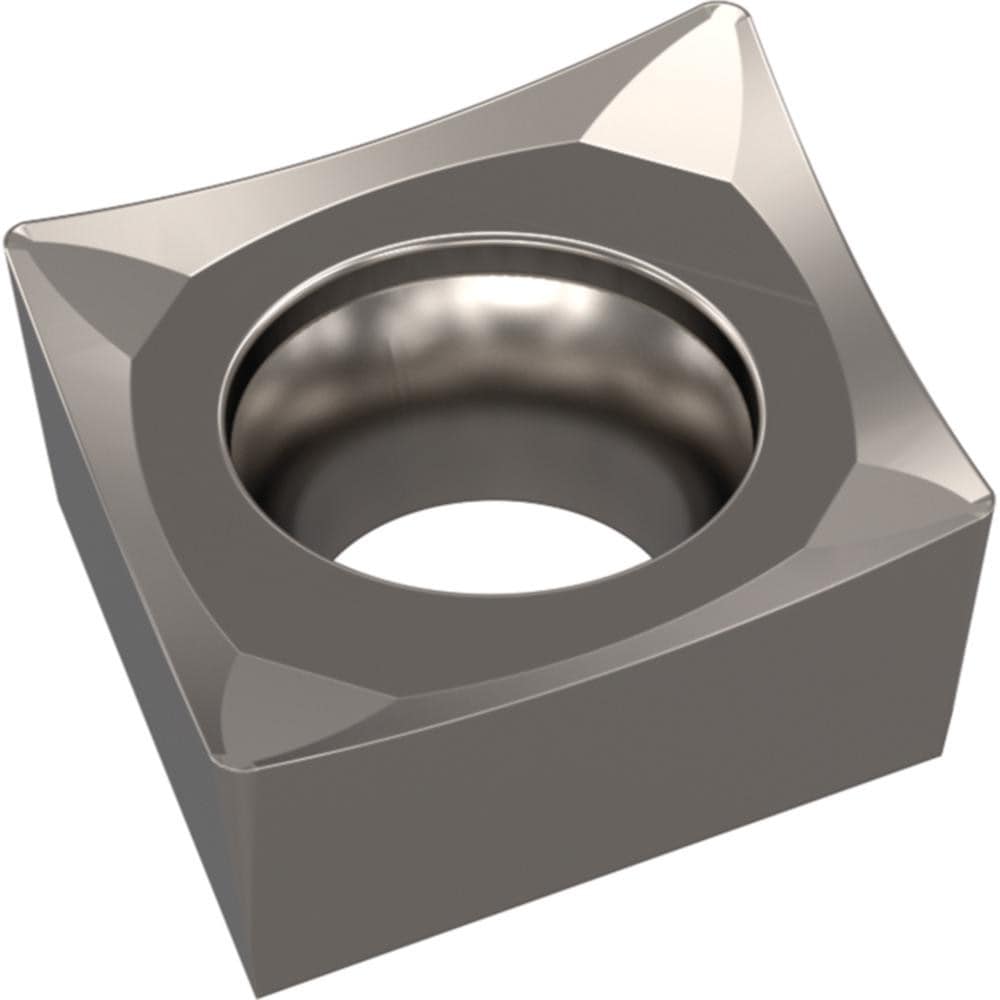

Brand: Widia / Part #: 6968754
Item #: 95242616
Brand: Widia
Model #: 6968754
Product Specifications
| Insert Style | CCGT |
| Insert Shape Code | C |
| Insert Size Code | 432 |
| Insert Shape | Diamond |
| Coating/Finish | AlTiN |
| Manufacturer Grade | WU05PT |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Material | Carbide |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Maximum Depth of Cut (Decimal Inch) | 0.2539 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Clearance Code | C |
| Tolerance Code | G |
| Included Angle | 80.00 |
| Relief Angle | 7.000 |
| Series | CCGT |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.5077 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Secondary Workpiece Material Code | P; S; K; M |
| Ansi Code | CCGT432AL |
| Iso Code | CCGT120408AL |
| Manufacturers Catalog Number | CCGT432AL |
| Cutting Direction | Neutral |
| Coating Classification | PVD |
| Chip Breaker | AL |
| Style | CCGT |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Internal Turning |
