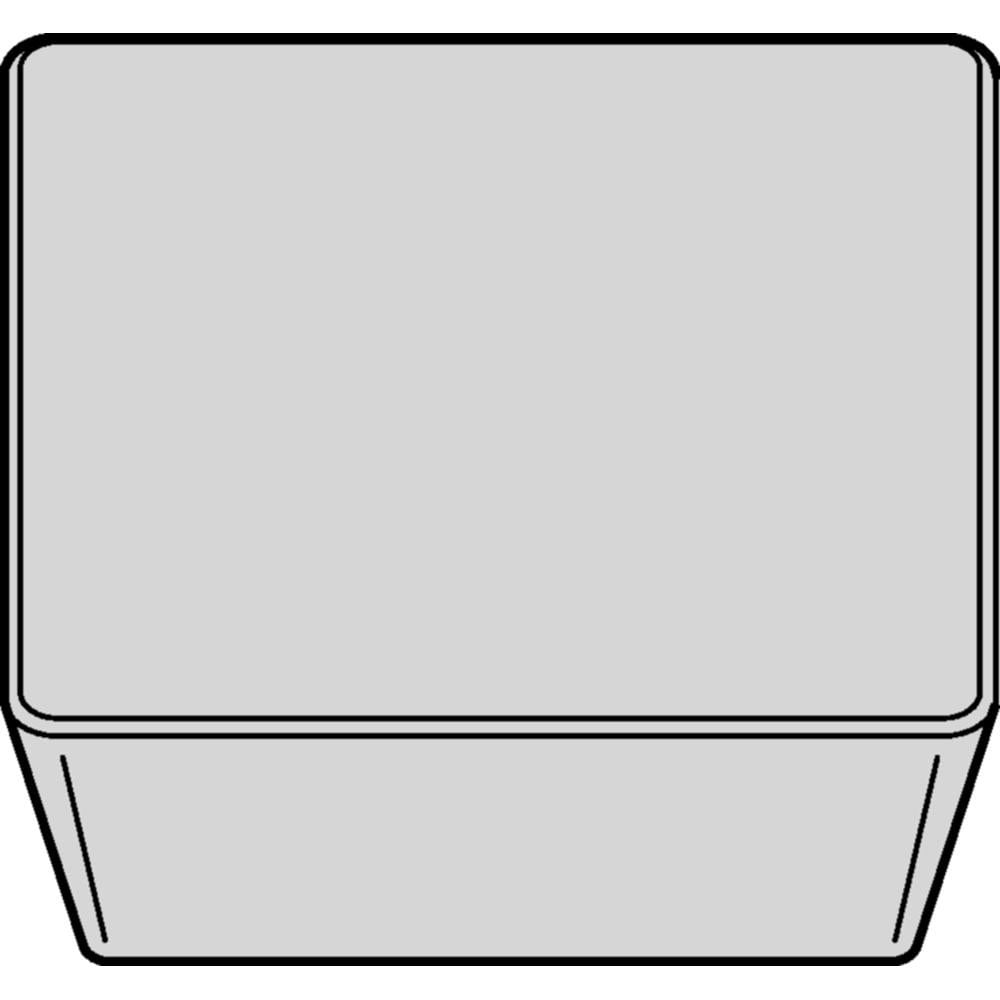

Brand: Widia / Part #: 4170943
Item #: 93323681
Brand: Widia
Model #: 4170943
Product Specifications
| Insert Style | SPG |
| Insert Shape Code | S |
| Insert Size Code | 322 |
| Insert Shape | Square |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Manufacturer Grade | WK20CT |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Material | Carbide |
| Maximum Depth of Cut (Decimal Inch) | 0.1876 |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Clearance Code | P |
| Tolerance Code | G |
| Included Angle | 90.00 |
| Relief Angle | 11.000 |
| Series | SPGN |
| Coating Process | MTCVD |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.3752 |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Iso Code | SPGN090308 |
| Cutting Direction | Neutral |
| Coating Classification | Multi-Layered CVD |
| Chip Breaker | None |
| Style | SPGN |
| Width (Decimal Inch - 4 Decimals) | 0.3752 |
| Multi-Use Tool | No |
| Full Radius | No |
| Multi-Use Application | Turning |
