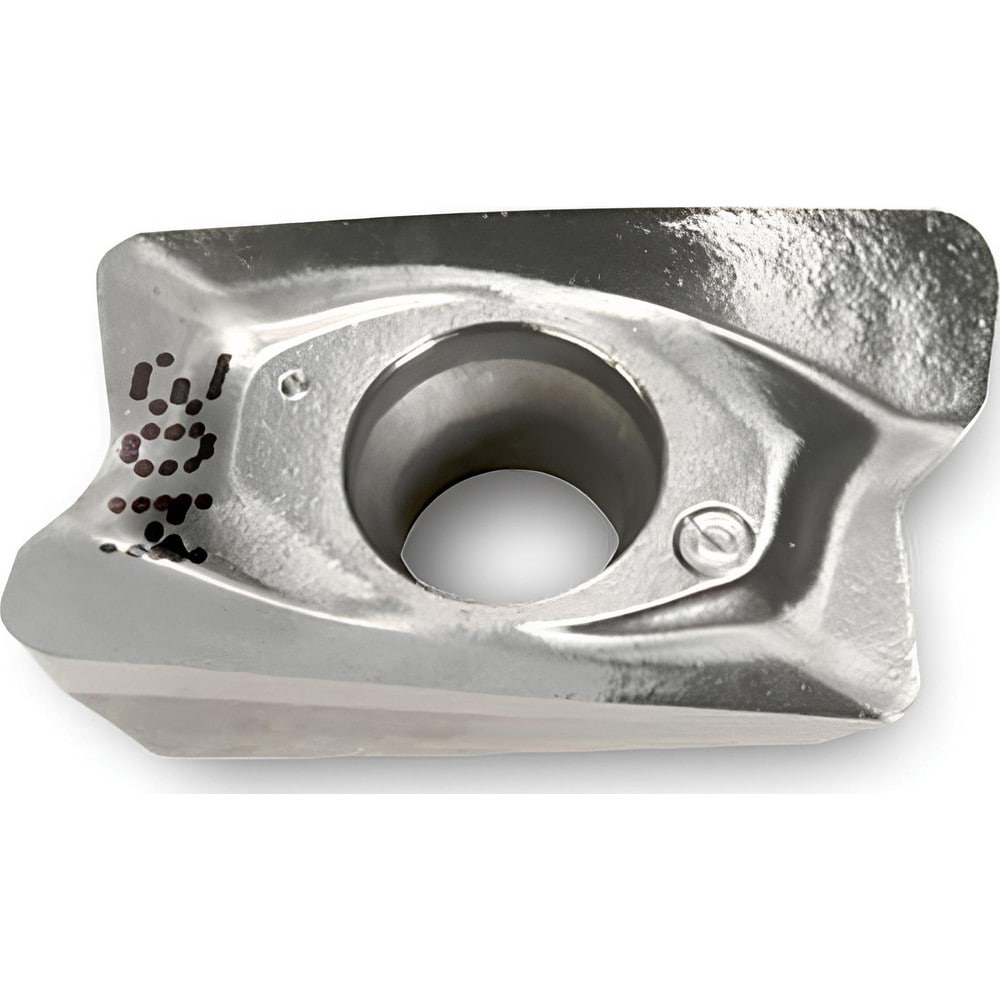

Brand: Ingersoll Cutting Tools / Part #: 5812885

Brand: Ingersoll Cutting Tools / Part #: 5812885


Item #: 67323147
Brand: Ingersoll Cutting Tools
Model #: 5812885

Product Specifications

Insert Style AOMT
Insert Size Code 180516
Insert Material Carbide
Manufacturer Grade IN30M
Inscribed Circle (Decimal Inch) 0.4240
Corner Radius (Inch) 1/16
Insert Hand Right Hand
Series AOMT
Coating Process Uncoated
Maximum Depth of Cut (Decimal Inch) 0.6600
Number Of Cutting Edges 2
Insert Shape Parallelogram
Rake Positive
Primary Workpiece Material Stainless Steel; Cast Iron
Primary Workpiece Material Code K; M
Ansi Code AOMT180516FR-P S
Manufacturers Catalog Number AOMT180516FR-P S IN30M
Cutter Series Compatibility 12J4E; 2J4E
Chip Breaker P
Cutting Direction Right Hand
Shape Parallelogram
Length of Cut (mm) 16.7600
Insert Holding Method Screw
Coating Classification Uncoated
Single or Double Sided Insert Single
Coating/Finish Uncoated
Included Angle Degree 85
Width (Decimal Inch - 4 Decimals) 0.4240
Thickness (Decimal Inch - 4 Decimals) 0.2400
Multi-Use Tool No
Length (Decimal Inch - 4 Decimals) 0.7300
$ 22.92
