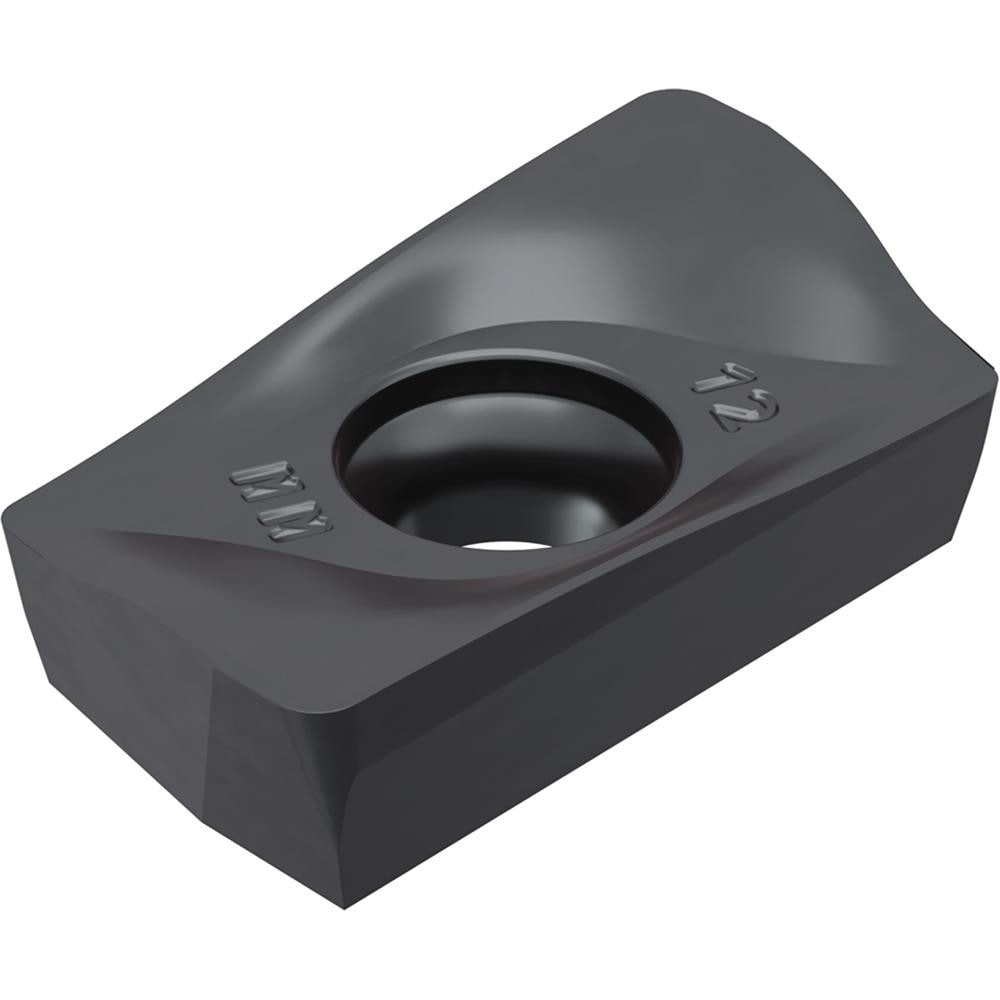

Brand: Widia / Part #: 6870184
Item #: 95101390
Brand: Widia
Model #: 6870184
Product Specifications
| Insert Style | XPHT |
| Insert Size Code | 2206 |
| Insert Size | 22 |
| Insert Material | Carbide |
| Width (Inch) | 1/2 |
| Manufacturer Grade | WK15CM |
| Thickness (Inch) | 1/4 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Corner Radius (Inch) | 3/64 |
| Insert Hand | Right Hand |
| Relief Angle | 5.000 |
| Series | VSM22 |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Maximum Depth of Cut (Decimal Inch) | 0.7870 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | XPHT220612PDSRMM |
| Iso Code | XPHT220612PDSRMM |
| Manufacturers Catalog Number | XPHT220612PDSRMM |
| Cutter Series Compatibility | VSM22 XPHT |
| Chip Breaker | MM |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Parallelogram |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Included Angle Degree | 80 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2500 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.8876 |
