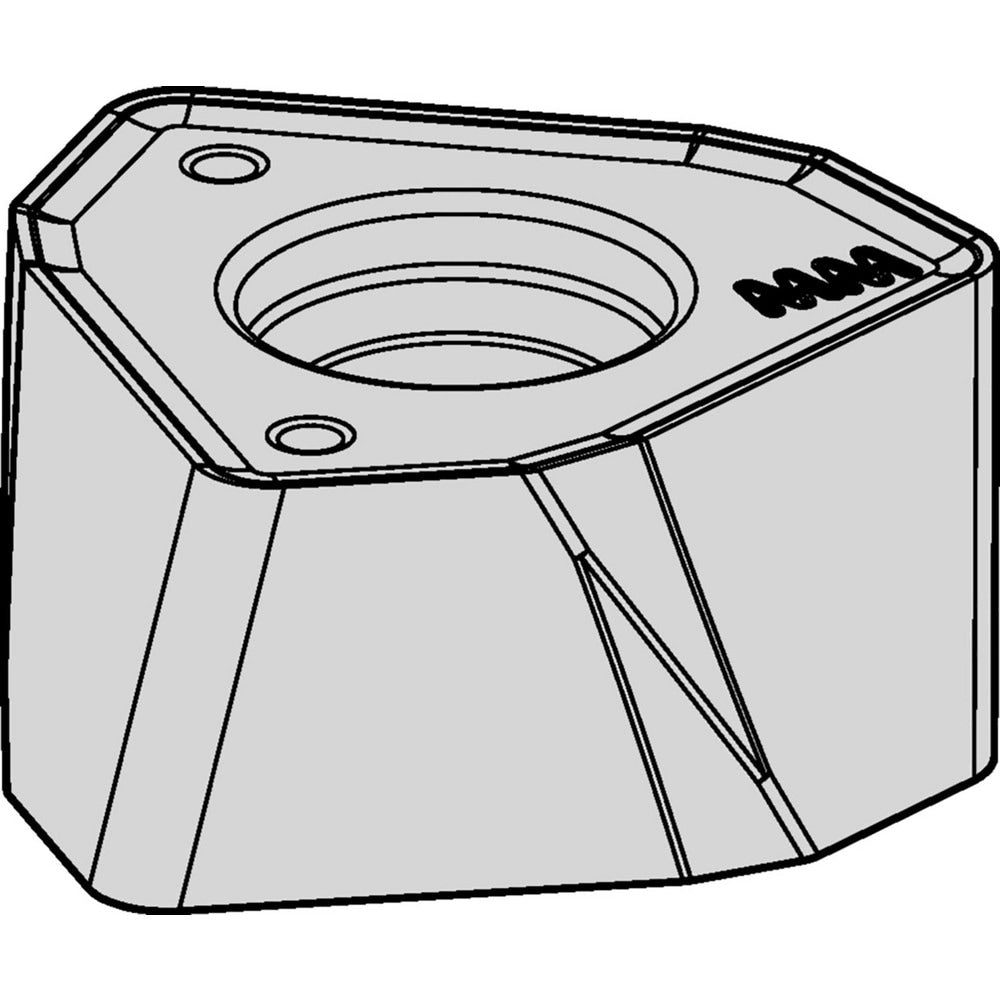

Brand: Widia / Part #: 6284471
Item #: 94015435
Brand: Widia
Model #: 6284471
Product Specifications
| Insert Style | WOEJ |
| Insert Size Code | 1207 |
| Insert Size | 12 |
| Insert Material | Carbide |
| Width (Inch) | 37/64 |
| Manufacturer Grade | WS40PM |
| Length (Inch) | 37/64 |
| Inscribed Circle (Decimal Inch) | 0.4720 |
| Inscribed Circle (mm) | 12.00 |
| Corner Radius (Decimal Inch) | 0.0500 |
| Insert Hand | Right Hand |
| Relief Angle | 0.000 |
| Series | M370 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1890 |
| Maximum Depth of Cut (Decimal Inch) | 0.5790 |
| Number Of Cutting Edges | 6 |
| Insert Shape | Trigon |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material | Non-Ferrous Metal |
| Secondary Workpiece Material Code | N |
| Ansi Code | WOEJ120712SRMM |
| Iso Code | WOEJ120712SRMM |
| Manufacturers Catalog Number | WOEJ120712SRMM |
| Cutter Series Compatibility | M370 WO1207 IN |
| Chip Breaker | MM |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Trigon |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 101.50 |
| Width (Decimal Inch - 4 Decimals) | 0.5790 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2870 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5790 |
