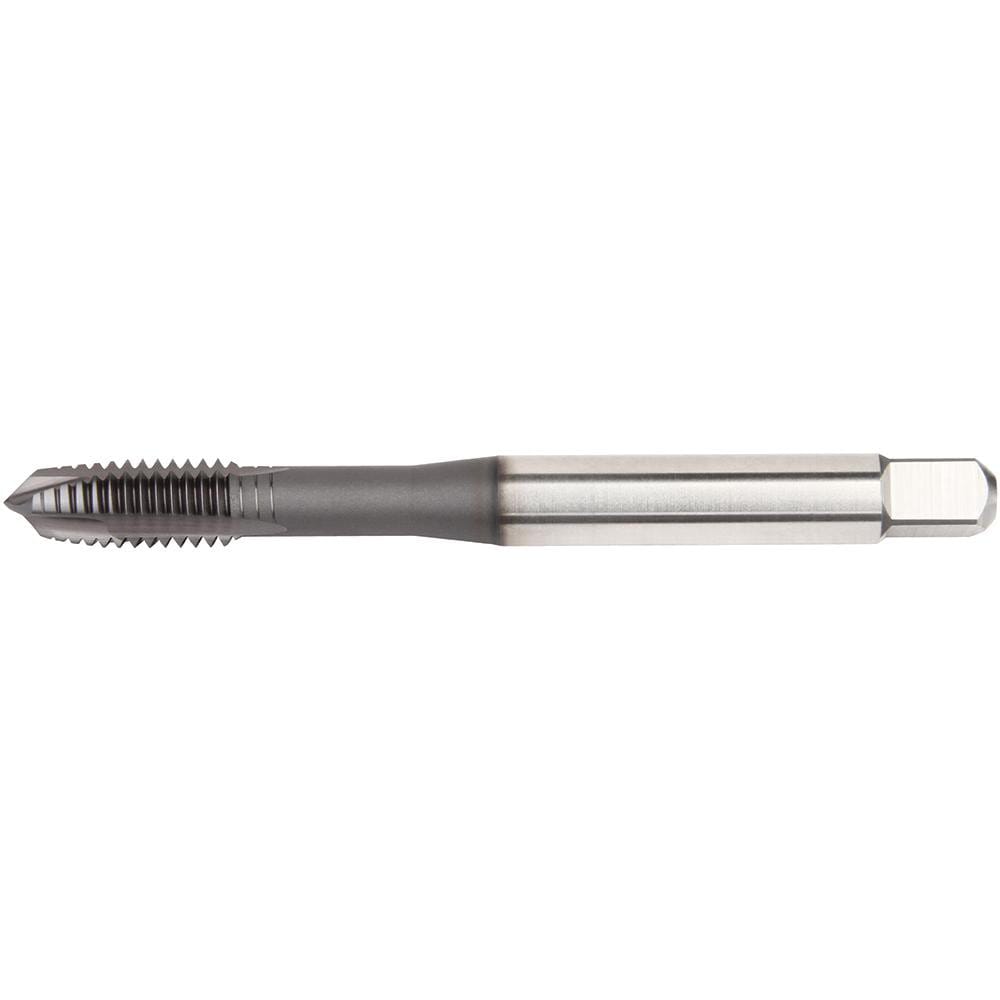

Brand: Widia / Part #: 5472636
Item #: 93304368
Brand: Widia
Model #: 5472636
Product Specifications
| Thread Size (Inch) | #6-32 |
| Number Of Flutes | 2 |
| Chamfer | Plug |
| Thread Limit | 2B |
| Class Of Fit | 2B |
| Coating/Finish | TiN |
| Threads per Inch | 32 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (Decimal Inch) | 0.7900 |
| Thread Pitch (Decimal Inch) | 0.0313 |
| Thread Standard | UNC |
| Material Grade | WU41EG |
| Thread Length (Decimal Inch) | 0.3500 |
| Overall Length (Decimal Inch) | 2.2000 |
| Shank Diameter (Decimal Inch) | 0.1575 |
| Square Size (Decimal Inch) | 0.1180 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | VT-SPO |
