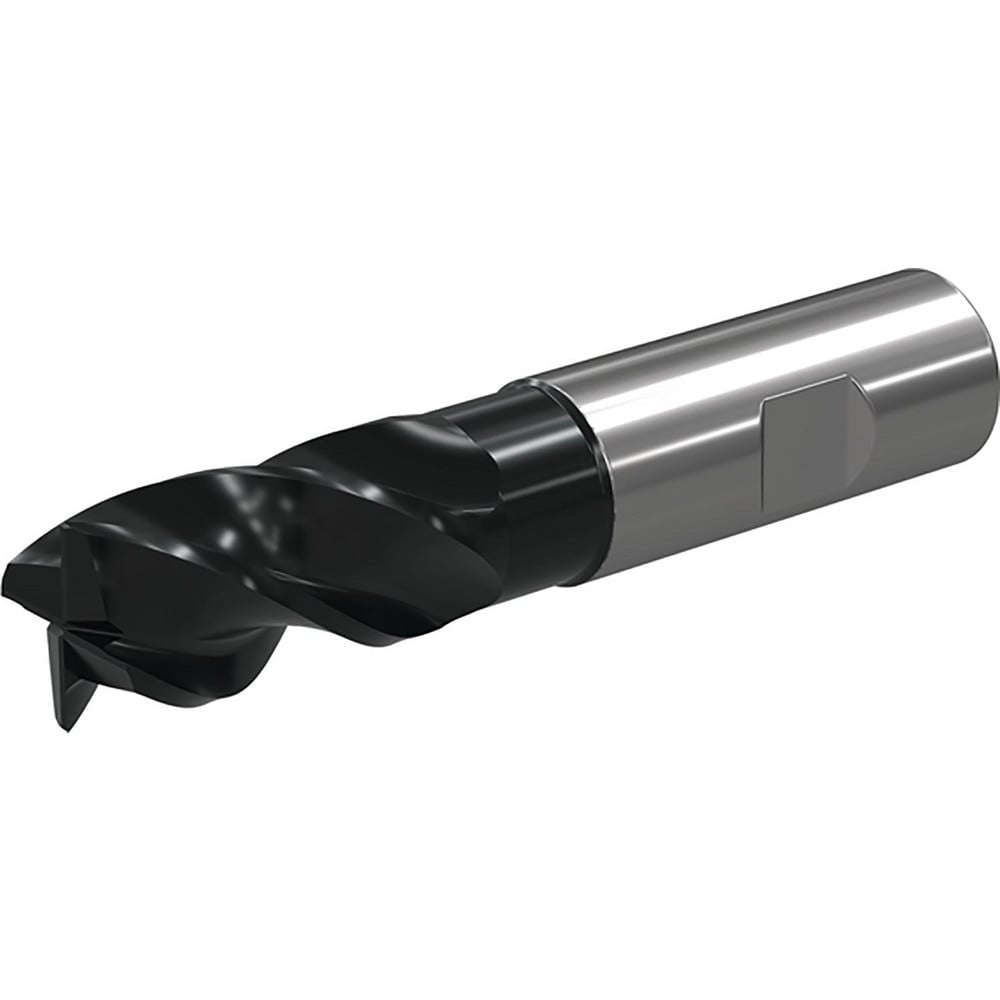

Brand: Widia / Part #: 7007001
Item #: 67805390
Brand: Widia
Model #: 7007001
Product Specifications
| Mill Diameter (mm) | 6.00 |
| Chamfer Width (mm) | 0.150 |
| Coating/Finish | TiAln |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 4 |
| Single Or Double End | Single End |
| Overall Length (mm) | 57.0000 |
| Length of Cut (mm) | 11.0000 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Flute Direction | Right Hand |
| Helix Angle | 38 |
| Chipbreaker | No |
| Chamfer Angle | 45.000 |
| Length Type | Regular |
| Flute Type | Variable; Helical |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | Yes |
| Shank Diameter (mm) | 6.0000 |
| Minimum Helix Angle | 38 |
| Maximum Helix Angle | 38 |
| Series | WCE4 |
| Chamfer Length (mm) | 0.15 |
| Helix Style | Variable |
| Manufacturers Catalog Number | W4N1M04003CAW WU20PE |
