Brand: Widia / Part #: 3852651

Brand: Widia / Part #: 3852651


Item #: 02771913
Brand: Widia
Model #: 3852651

Product Specifications

Minimum Bore Diameter (mm) 63.000
Maximum Bore Depth (mm) 150.00
Toolholder Style MCLNR
Tool Material Steel
Shank Diameter (mm) 50.0000
Hand of Holder Right Hand
Overall Length (mm) 350.0000
Compatible Insert Size Code CN..120408
Insert Holding Method Clamp
Compatible Insert Shape Diamond
Insert Included No
Rake Negative
Cutting Direction Right Hand
Rake Angle -7.000
Lead Angle 95.000
Series A-MCLN
Insert Inscribed Circle (Inch) 1/2
Compatible Insert Thickness (Decimal Inch) 0.1875
Compatible Insert Thickness (mm) 4.76
Multi-use Tool Yes

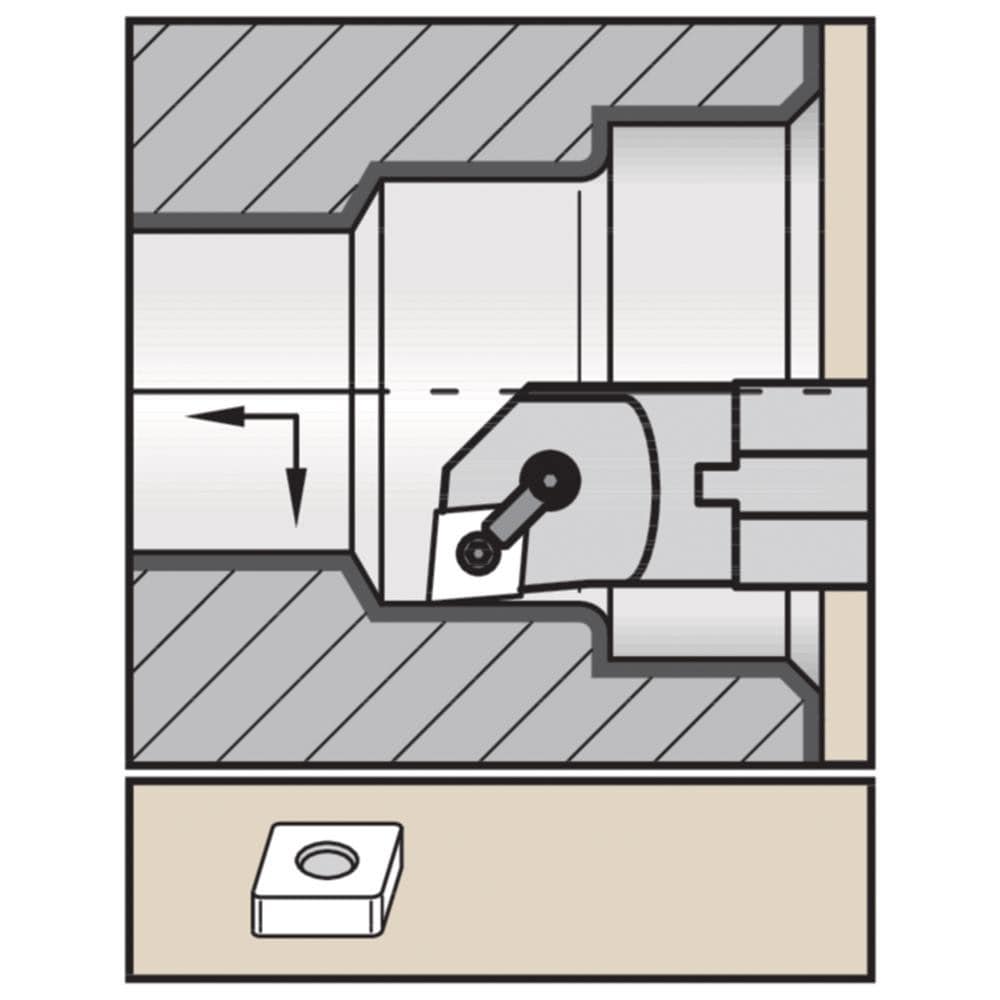

Cutting Tool Application Boring
Back of Bar to Cutting Edge (mm) 60.00
Center to Cutting Edge (mm) 35.00
Primary Workpiece Material Universal
Multi-Use Application Boring
Number of Inserts Used on Toolholder 1
Insert Thickness (Decimal Inch) 0.1875
Insert Thickness (Inch) 3/16
Coolant Hole Diameter (mm) 6.40
Number of Inserts Included in Order 0
Manufacturers Catalog Number A50UMCLNR12
Radial Rake -5
Coolant Through Yes
$ 386.68
