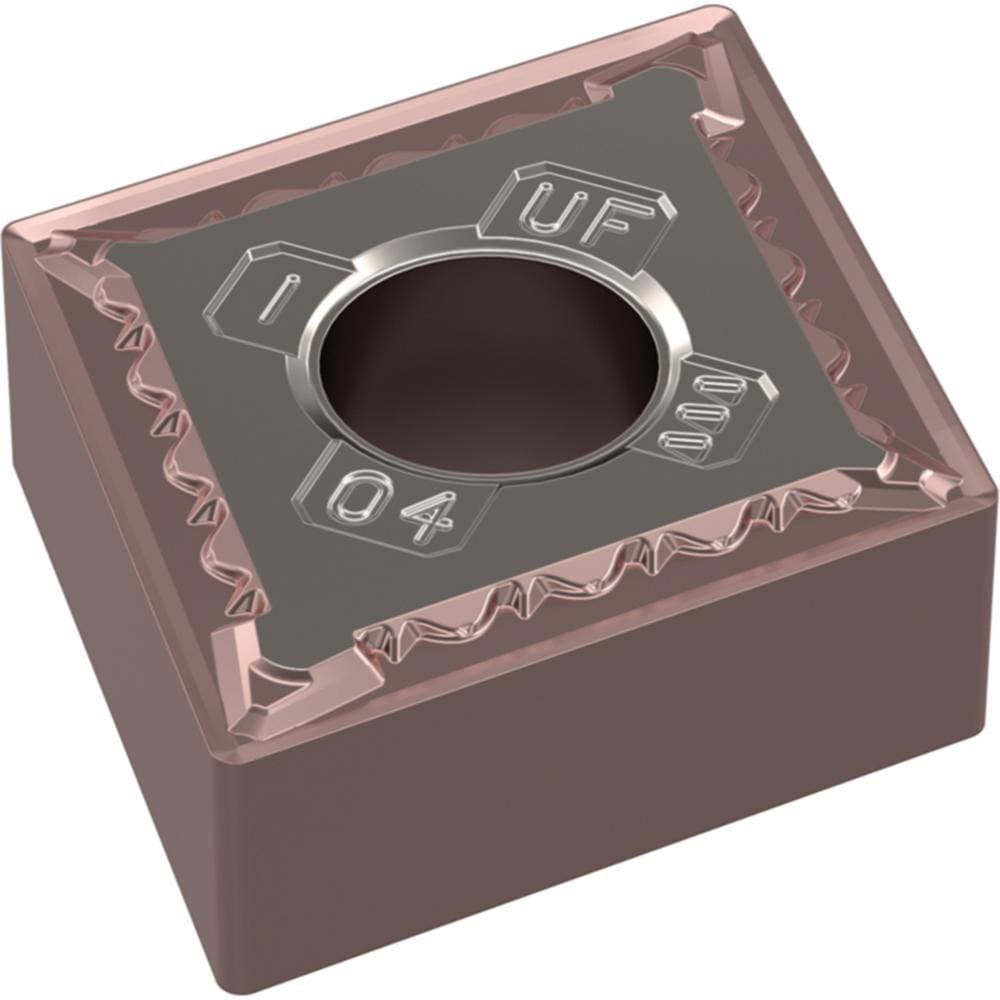

Brand: Widia / Part #: 4169353

Brand: Widia / Part #: 4169353


Item #: 13703400
Brand: Widia
Model #: 4169353

Product Specifications

Insert Style CNMG
Insert Shape Code C
Insert Size Code 431
Insert Shape Diamond
Coating/Finish TiOCN; TiCN; TiN; Al2O3
Manufacturer Grade WM15CT
Corner Radius (Decimal Inch) 0.0157
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.2031
Maximum Depth of Cut (Decimal Inch) 0.2539
Inscribed Circle (Decimal Inch) 0.5000
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1875
Clearance Code N
Tolerance Code M
Included Angle 80.00
Relief Angle 0.000
Series CNMG
Coating Process MTCVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.5077
Number Of Cutting Edges 8
Primary Workpiece Material Stainless Steel
Primary Workpiece Material Code M
Secondary Workpiece Material Super-alloys & Titanium; Steel
Secondary Workpiece Material Code P; S
Ansi Code CNMG431UF
Iso Code CNMG120404UF
Manufacturers Catalog Number CNMG431UF
Cutting Direction Neutral
Coating Classification Multi-Layered CVD
Chip Breaker UF
Style CNMG
Width (Decimal Inch - 4 Decimals) 0.5000
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$ 7.14
