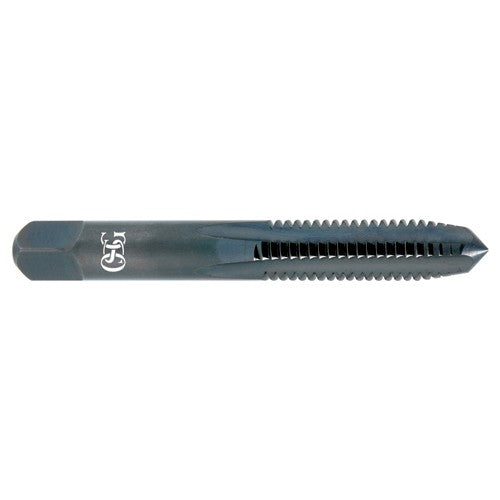

6-32 Dia-H1-3 FL-Bright HSS-Bottoming Hand Tap
Item #: TP101003800
Brand: OSG USA, Inc.
Model #: 1003800
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #6 |
| Tool Type | General Purpose Tap |
| Threads per Inch (TPI) | 32 |
| Chamfer | 1.5P-2P |
| Thread Standard | NC |
| Coating | Bright |
| Overall Length (OAL) | 2″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 11/16″ |
| End Shape | Chamfer |
| Usable Length (LU) | 0.799″ |
| Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.14″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 |
| Measurement Type | Wire Gage |
| Applicable Material | Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Series/List # | 102 |
| Cutting Edge Material | HSS |
| Thread Size | #6 - 32 |
| Thread Tolerance Class (TCTR) | H1 |
