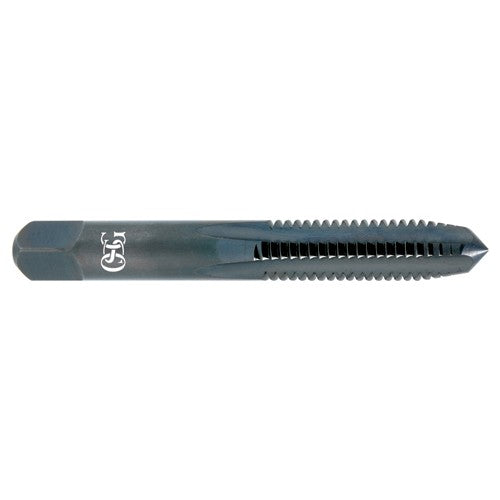

12-24 H3 4FL HSS Straight Flute Bottoming Tap-Steam Oxide
Item #: TP101025601
Brand: OSG USA, Inc.
Model #: 1025601
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #12 |
| Thread Tolerance Class (TCTR) | H3 |
| Threads per Inch (TPI) | 24 |
| Chamfer | 1.5P-2P |
| Thread Standard | NC |
| Coating | Black Oxide |
| Overall Length (OAL) | 2-3/8″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 15/16″ |
| End Shape | Chamfer |
| Usable Length (LU) | 1.11″ |
| Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.22″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 |
| Measurement Type | Wire Gage |
| Applicable Material | Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Series/List # | 102 |
| Cutting Edge Material | HSS |
| Thread Size | #12 - 24 |
