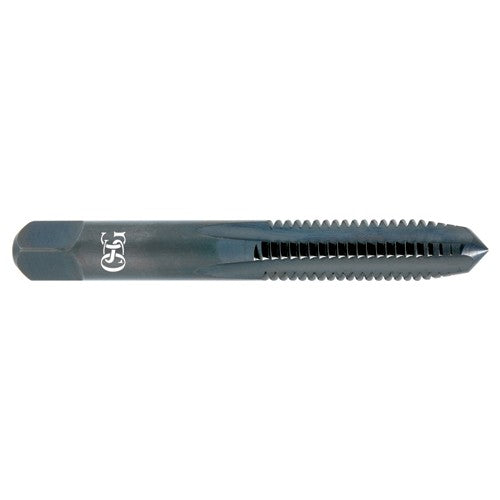

1/4-20 Dia-H5-4 FL-Bright HSS-Bottoming Hand Tap
Item #: TP101140200
Brand: OSG USA, Inc.
Model #: 1140200
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1/4″ |
| Tool Type | General Purpose Tap |
| Threads per Inch (TPI) | 20 |
| Chamfer | 1.5P-2P |
| Thread Standard | NC |
| Coating | Bright |
| Overall Length (OAL) | 2-1/2″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1″ |
| End Shape | Chamfer |
| Usable Length (LU) | 1.181″ |
| Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
| Applicable Material | Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Series/List # | 101 |
| Cutting Edge Material | HSS |
| Thread Size | 1/4″ - 20 |
| Thread Tolerance Class (TCTR) | H5 |
