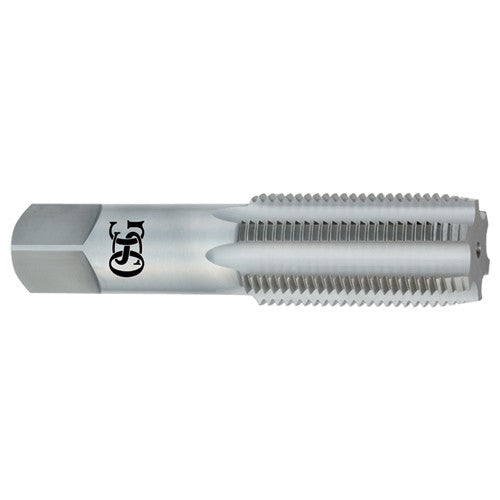

1-1/8-8 4Fl H5 HSS Straight Flute Bottoming Tap-Bright
Item #: TP101690200
Brand: OSG USA, Inc.
Model #: 1690200
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1-1/8″ |
| Chamfer | 1.5P-2P |
| Threads per Inch (TPI) | 8 |
| Coating | Bright |
| Overall Length (OAL) | 5-7/16″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 2-9/16″ |
| End Shape | Chamfer |
| Usable Length (LU) | 2.94″ |
| Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.895″ |
| Shank Type | Straight |
| Flute Count (NOF) | 4 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 0 Degrees |
| Measurement Type | Inch |
| Applicable Material | Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Series/List # | 180 |
| Cutting Edge Material | HSS |
| Thread Size | 1-1/8″ - 8 |
| Thread Tolerance Class (TCTR) | H5 |
