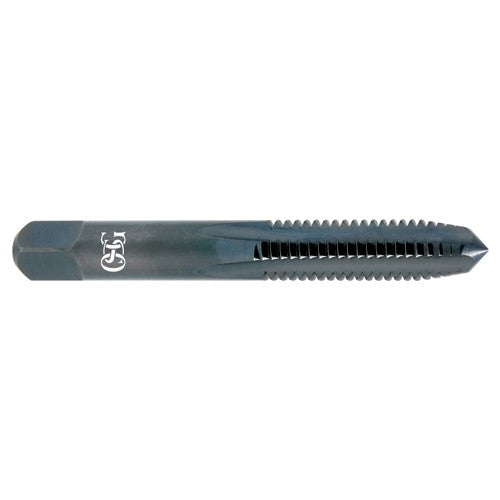

M6x1.0 4Fl D5 HSS Straight Flute Plug Tap-Steam Oxide
Item #: TP121971001
Brand: OSG USA, Inc.
Model #: 1971001
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M6 |
| Tool Type | Hand Tap |
| Thread Pitch (TP) | 1 mm |
| Chamfer | 4P-4.5P |
| Thread Standard | Metric |
| Coating | Black Oxide |
| Overall Length (OAL) | 2-1/2″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1″ |
| End Shape | Chamfer |
| Usable Length (LU) | 30 mm |
| Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 6.47 mm |
| Shank Type | Straight |
| Flute Count (NOF) | 4 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 0 Degrees |
| Measurement Type | Metric |
| Applicable Material | Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Series/List # | 141 |
| Cutting Edge Material | HSS |
| Thread Size | M6 × 1 |
| Thread Tolerance Class (TCTR) | D5 |
