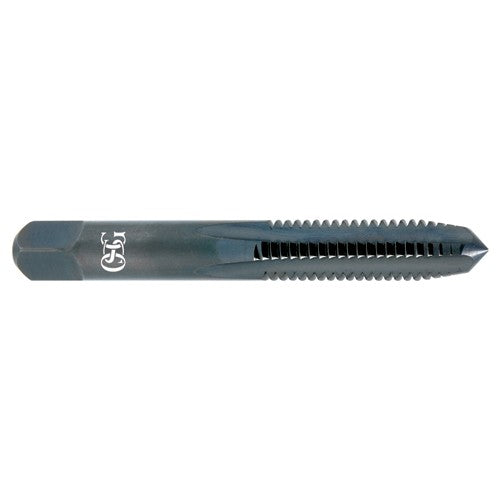

M10x1.5 4Fl D6 HSS Straight Flute Plug Tap-Steam Oxide
Item #: TP121971601
Brand: OSG USA, Inc.
Model #: 1971601
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M10 |
| Tool Type | Hand Tap |
| Thread Pitch (TP) | 1.5 mm |
| Chamfer | 4P-4.5P |
| Thread Standard | Metric |
| Coating | Black Oxide |
| Overall Length (OAL) | 2-15/16″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-1/4″ |
| End Shape | Chamfer |
| Usable Length (LU) | 35 mm |
| Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 9.67 mm |
| Shank Type | Straight |
| Flute Count (NOF) | 4 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 0 Degrees |
| Measurement Type | Metric |
| Applicable Material | Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Series/List # | 141 |
| Cutting Edge Material | HSS |
| Thread Size | M10 × 1.5 |
| Thread Tolerance Class (TCTR) | D6 |
