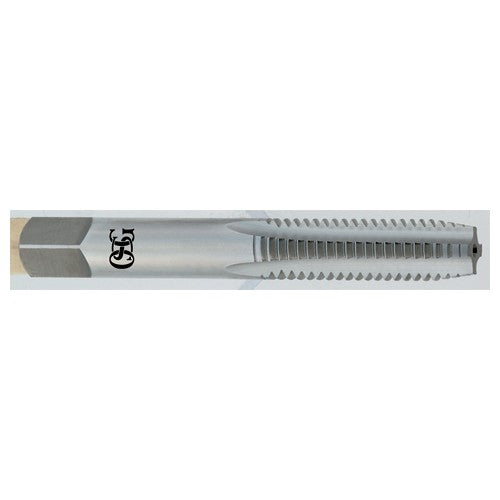

7/16-20 Dia-H3-4 FL-Bright HSS Left Hand-Plug Hand Tap
Item #: TP161661500
Brand: OSG USA, Inc.
Model #: 1661500
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 7/16″ |
| Tool Type | General Purpose Tap |
| Threads per Inch (TPI) | 20 |
| Chamfer | 4P-4.5P |
| Thread Standard | NF |
| Coating | Bright |
| Overall Length (OAL) | 3-5/32″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-7/16″ |
| End Shape | Chamfer |
| Usable Length (LU) | 1.688″ |
| Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.322″ |
| Cutting Direction (HAND) | Left Hand |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
| Applicable Material | Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Series/List # | 101L |
| Cutting Edge Material | HSS |
| Thread Size | 7/16″ - 20 |
| Thread Tolerance Class (TCTR) | H3 |
