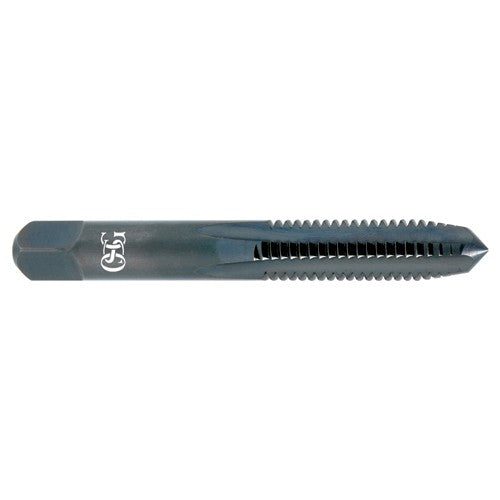

5/16-18 4Fl H3 HSS Straight Flute Plug Tap-Nitride & Steam Oxide
Item #: TP181600707
Brand: OSG USA, Inc.
Model #: 1600707
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 5/16″ |
| Tool Type | Hand Tap |
| Threads per Inch (TPI) | 18 |
| Chamfer | 4P-4.5P |
| Thread Standard | NC |
| Coating | Black Oxide | Nitride |
| Overall Length (OAL) | 2-23/32″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-1/8″ |
| End Shape | Chamfer |
| Usable Length (LU) | 1.323″ |
| Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Shank Type | Straight |
| Flute Count (NOF) | 4 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 0 Degrees |
| Measurement Type | Inch |
| Applicable Material | Cast Iron |
| Series/List # | 101C |
| Cutting Edge Material | HSS |
| Thread Size | 5/16″ - 18 |
| Thread Tolerance Class (TCTR) | H3 |
