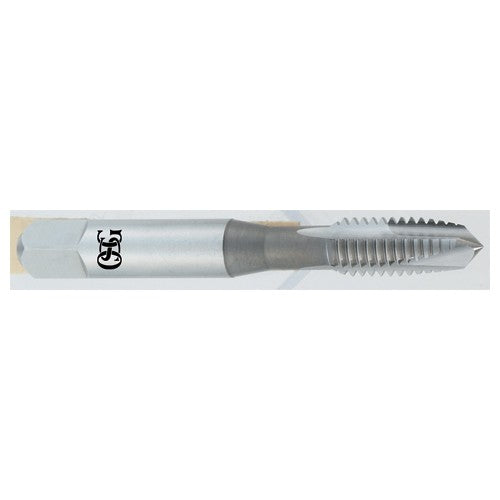

M3x0.5 2FL 6H High Speed Steel Spiral Point Tap - Steam Oxide
Item #: TP202888001
Brand: OSG USA, Inc.
Model #: 2888001
| Product Specifications | |
|---|---|
| Thread Standard | Metric |
| Cutting Edge Material | HSS |
| Thread Size | M3 × 0.5 |
| Tool Type | Hand Tap |
| Thread Diameter Size (TDZ) | M3 |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials |
| Thread Pitch (TP) | 0.5 mm |
| Connection Diameter Machine Side (DCONMS) | 3.58 mm |
| Thread Tolerance Class (TCTR) | 6H |
| Thread Cutting Part Length (THL) | 5/8″ |
| Usable Length (LU) | 16 mm |
| End Shape | Spiral Point |
| Overall Length (OAL) | 1-15/16″ |
| Style | Plug |
| Chamfer | 4P-4.5P |
| Measurement Type | Metric |
| Coating | Black Oxide |
| Series/List # | 288 |
| Flute Count (NOF) | 2 |
