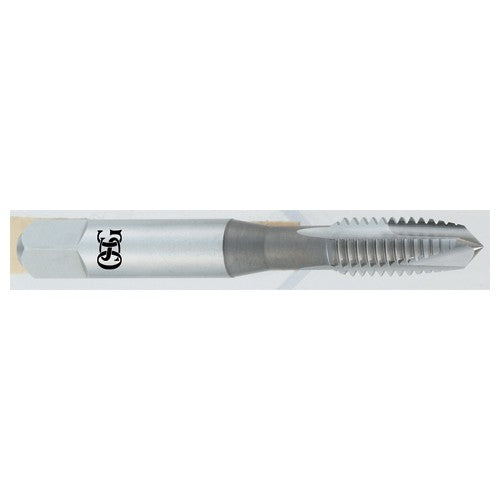

M10 1.5 Dia-6H-3 FL-HSS-Bright-Plug Spiral Point Tap
Item #: TP202888500
Brand: OSG USA, Inc.
Model #: 2888500
| Product Specifications | |
|---|---|
| Thread Standard | Metric |
| Cutting Edge Material | HSS |
| Thread Size | M10 × 1.5 |
| Tool Type | High Performance Tap |
| Thread Diameter Size (TDZ) | M10 |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials |
| Thread Pitch (TP) | 1.5 mm |
| Connection Diameter Machine Side (DCONMS) | 9.67 mm |
| Thread Tolerance Class (TCTR) | 6H Thread Limit |
| Thread Cutting Part Length (THL) | 1-1/4″ |
| Usable Length (LU) | 32 mm |
| End Shape | Spiral Point |
| Overall Length (OAL) | 2-15/16″ |
| Style | Plug |
| Chamfer | 4P-4.5P |
| Measurement Type | Metric |
| Coating | Bright |
| Series/List # | 288 |
| Flute Count (NOF) | 3 |
