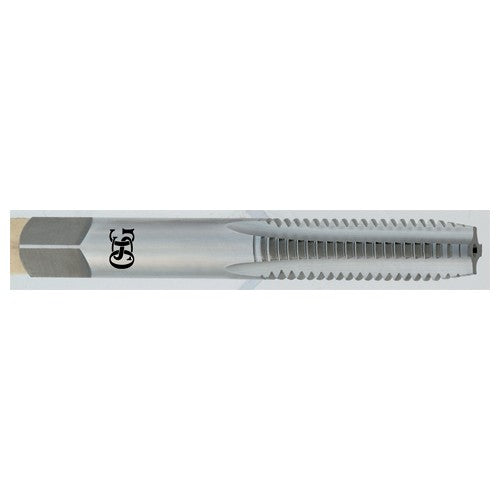

1/4-20 3FL H2 High Speed Steel Straight Fl Tap - Bright
Item #: TP206013300
Brand: OSG USA, Inc.
Model #: 6013300
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1/4″ |
| Cutting Edge Material | HSS |
| Threads per Inch (TPI) | 20 |
| Thread Tolerance Class (TCTR) | H2 |
| Thread Standard | NC |
| Chamfer | 1.5P-2P |
| Overall Length (OAL) | 2-23/32″ |
| Coating | Bright |
| Thread Cutting Part Length (THL) | 1-1/8″ |
| Flute Type | Straight |
| Usable Length (LU) | 1.322″ |
| Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.317″ |
| Measurement Type | Inch |
| Flute Count (NOF) | 3 |
| Series/List # | 126 |
| Applicable Material | Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Thread Size | 1/4″ - 20 |
