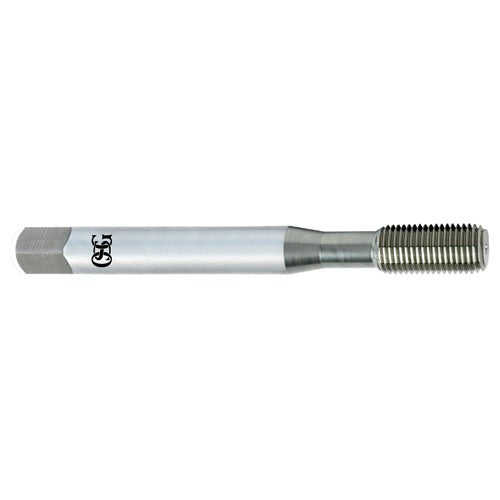

10-32 0 Fl H2 HSS-CO Forming Tap- Steam Oxide
Item #: TP221400120201
Brand: OSG USA, Inc.
Model #: 1400120201
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Coating | Black Oxide |
| Thread Diameter Size (TDZ) | #10 |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 2.37″ |
| Threads per Inch (TPI) | 32 |
| Thread Cutting Part Length (THL) | 7/8″ |
| Helix Angle | 0 Degrees |
| Usable Length (LU) | 0.885″ |
| Chamfer | 2.5P |
| Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Measurement Type | Wire Gage |
| Flute Count (NOF) | 0 |
| End Shape | Chamfer |
| Thread Tolerance Class (TCTR) | H2 |
| Cutting Edge Material | HSSCo |
| Thread Standard | UNF |
| Series/List # | 14001 |
| Applicable Material | Steel | Stainless Steel | Aluminum / Non-Ferrous Materials | Hard Materials |
| Thread Size | #10 - 32 |
