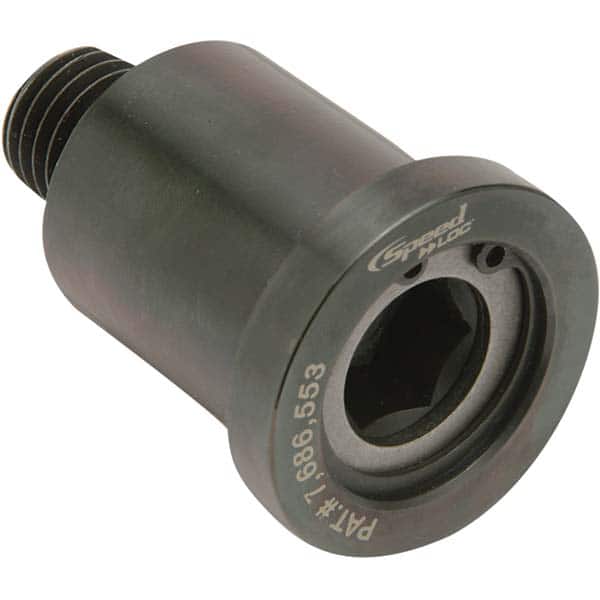

MPower by Modern Industries - Modular Fixturing Shanks System Compatibility: SpeedLoc Shank Diameter (mm): 13.0000
Item #: 18953505
Brand: MPower by Modern Industries
Model #: 200-AS-13011
Product Specifications
Modular Fixturing Shanks; System Compatibility: SpeedLoc ; Shank Diameter (mm): 13.0000 ; Plate Thickness Compatibility (Decimal Inch): 0.7500 ; Head Diameter (Decimal Inch): 0.6350 ; Shank Length (Decimal Inch): 0.8370 ; Maximum Holding Force (Lb.): 2964.00
| System Compatibility | SpeedLoc |
| Shank Diameter (mm) | 13.0000 |
| Plate Thickness Compatibility (Decimal Inch) | 0.7500 |
| Head Diameter (Decimal Inch) | 0.6350 |
| Shank Length (Decimal Inch) | 0.8370 |
| Maximum Holding Force (Lb.) | 2964.00 |
| Head Height (Decimal Inch) | 0.0000 |
| Key Size (Inch) | 0.1875 |
| Material | 4340 Steel |
| Finish/Coating | BlackOxide |
