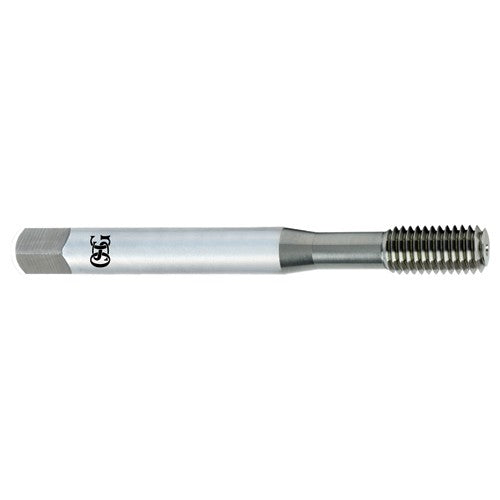

M6x1.0 0 Fl D5 HSS-CO Forming Tap- Bright
Item #: TP221410104000
Brand: OSG USA, Inc.
Model #: 1410104000
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Applicable Material | Steel | Stainless Steel | Aluminum / Non-Ferrous Materials | Hard Materials |
| Thread Diameter Size (TDZ) | M6 |
| Coating | Bright |
| Overall Length (OAL) | 63 mm |
| Coolant Supply Property (CSP) | External |
| Thread Cutting Part Length (THL) | 1″ |
| Helix Angle | 0 Degrees |
| Usable Length (LU) | 25.4 mm |
| Chamfer | 4.5P |
| Connection Diameter Machine Side (DCONMS) | 6.47 mm |
| Measurement Type | Metric |
| Flute Count (NOF) | 0 |
| End Shape | Chamfer |
| Thread Tolerance Class (TCTR) | D5 |
| Cutting Edge Material | HSSCo |
| Thread Standard | Metric |
| Series/List # | 14101 |
