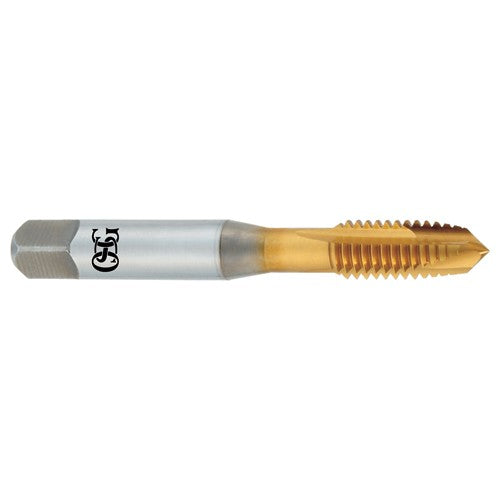

10-32 3FL H5 HSSE Spiral Point Tap - TiN
Item #: TP231742205
Brand: OSG USA, Inc.
Model #: 1742205
| Product Specifications | |
|---|---|
| Thread Standard | NF |
| Cutting Edge Material | HSSCo |
| Thread Size | #10 - 32 |
| Tool Type | Hand Tap |
| Thread Diameter Size (TDZ) | #10 |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials |
| Threads per Inch (TPI) | 32 |
| Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Thread Tolerance Class (TCTR) | H5 |
| Thread Cutting Part Length (THL) | 7/8″ |
| Usable Length (LU) | 0.866″ |
| End Shape | Spiral Point |
| Overall Length (OAL) | 2-3/8″ |
| Style | Plug |
| Chamfer | 4P-4.5P |
| Measurement Type | Wire Gauge |
| Coating | TiN |
| Series/List # | 320 |
| Flute Count (NOF) | 3 |
