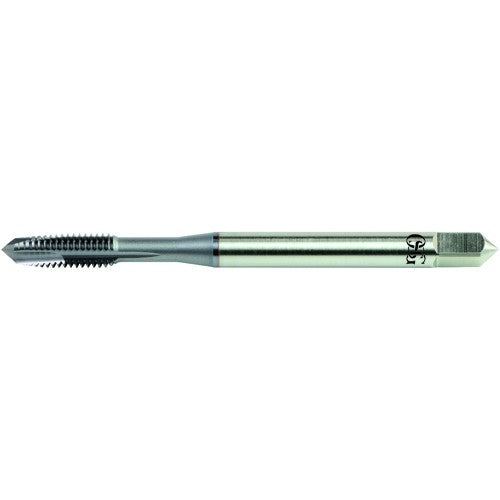

M4X0.7 D4 3FL PLUG AL DIN SP PT TAP
Item #: TP281111600303
Brand: OSG USA, Inc.
Model #: 1111600303
| Product Specifications | |
|---|---|
| Thread Standard | Metric |
| Cutting Edge Material | HSSCo |
| Thread Size | M4 × 0.7 |
| Standard | DIN |
| Thread Diameter Size (TDZ) | M4 |
| Tool Type | Hand Tap |
| Thread Pitch (TP) | 0.7 mm |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials |
| Thread Tolerance Class (TCTR) | D4 |
| Connection Diameter Machine Side (DCONMS) | 4.26 mm |
| Usable Length (LU) | 23 mm |
| Thread Cutting Part Length (THL) | 3/4″ |
| Overall Length (OAL) | 63 mm |
| End Shape | Spiral Point |
| Chamfer | 3.5P-4.5P |
| Style | Plug |
| Coating | Nitride |
| Measurement Type | Metric |
| Flute Count (NOF) | 3 |
| Series/List # | 11116 |
