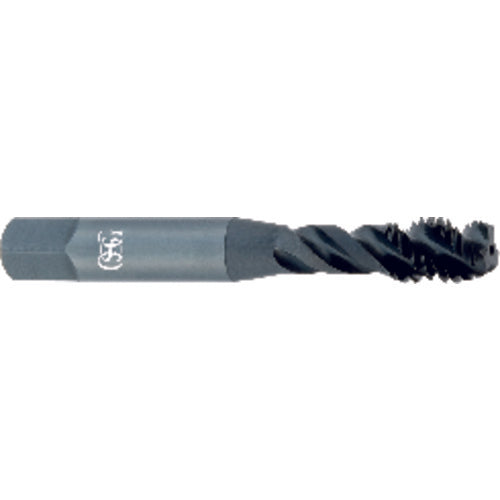

6-32 Dia. - H3-3 FL - HSSE - TiCN - Modified Bottoming - Spiral Flute Tap
Item #: TP282912408
Brand: OSG USA, Inc.
Model #: 2912408
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #6 |
| Thread Tolerance Class (TCTR) | H3 |
| Threads per Inch (TPI) | 32 |
| Tool Type | High Performance Tap |
| Thread Standard | NC |
| Chamfer | 2.5P-3P |
| Overall Length (OAL) | 2″ |
| Coating | TiCN |
| Thread Cutting Part Length (THL) | 11/16″ |
| Flute Type | Spiral |
| Usable Length (LU) | 0.685″ |
| Style | Modified Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.14″ |
| Measurement Type | Wire Gage |
| Flute Count (NOF) | 3 |
| Series/List # | 290 |
| Cutting Edge Material | HSSCo |
